Mechanism Study Kit Mechanical Trainer Teaching Equipment Didactic Equipment

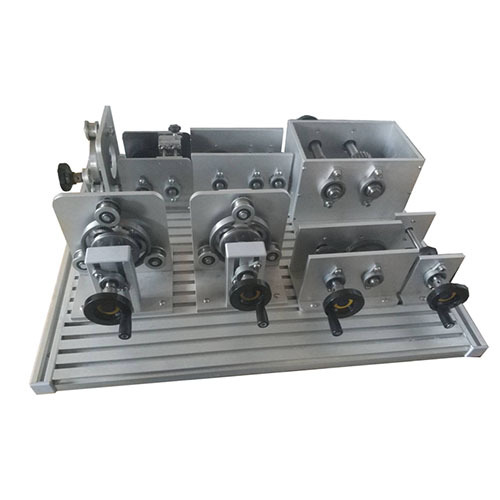

ZM1102T Mechanism Study Kit Mechanical Trainer Teaching Equipment Didactic Equipment
1 Product Overview
1.1 Overview
Through the training and training, master the changes of the chain drive, belt drive, gear transmission direction and transmission speed in the mechanical transmission, and better understand the principle in the mechanical transmission.
1.2 Features
(1) The training platform uses an aluminum profile substrate structure, and the components are sequentially mounted on the substrate.
(2) Modular structure, complete transmission structure, and can test a variety of transmission types.

2 Performance parameters
Input power: single-phase three-wire system 220V±10% 50Hz
Motor power: 60w
Dimensions: 720mm*480mm*270mm
Machine weight: <30kg
Working conditions: ambient temperature -10 ° C ~ +40 ° C relative humidity <85% (25 ° C)
3 Product composition
Table body, hand wheel, V belt, pulley, sprocket, chain, bevel gear, turbine, worm, clutch, coupling, spur gear
