SR 124 Marcet Boiler Thermal Lab Equipment Teaching Equipment Didactic Equipment
I. General Description
This table top equipment demonstrates the relationship between pressure and temperature of saturated steam by temperature – pressure curve.

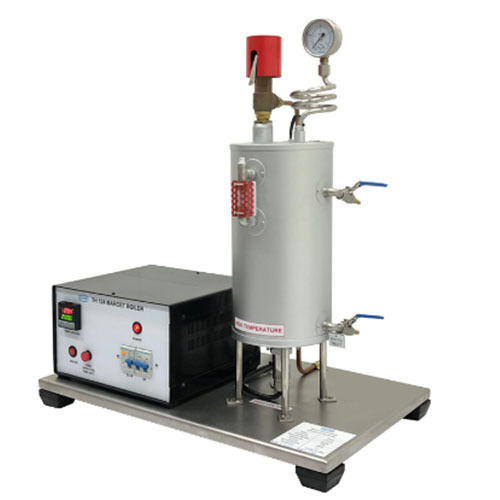

The equipment consists of an insulated boiler with an electric heater and inlet and outlet valves on stainless steel base with adjustable footings. Measuring and control instruments are provided.
Instruction manual is also included.

II. Technical Data
Boiler
 - Material    Stainless steel
 - Heater    2 kW
 - Maximum working pressure    15 kg/cm2 (1.47 MPa)
 - Maximum operating temperature    200ºC
Measuring instruments
 - Temperature digital display with limiter at 200ºC
- Pressure    Pressure gauge 0-20 kg/cm2 (0-1.96 MPa)
Accessories
 - Pressure relief valve.
Software for data display and analysis by computer (separately supplied).
Power supply    220 V, 1 Ph, 50 Hz. Other power supply is available on request.
