ZM7151 Level Control Training System Fluids Engineering Training Equipment Teaching Equipment Didactic Equipmentexperimental unit for control engineering experiments

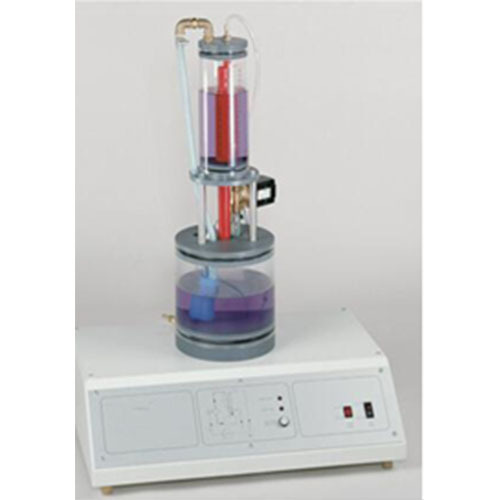

level control process with transparent tank
speed-controlled pump
level measurement by pressure sensor
disturbance variables generated by electromagnetic proportional valve in tank outlet
tank with overflow and graduated scale
process schematic on front panel
Technical Data
Level-controlled tank
- capacity: 1200mL
Storage tank
- capacity: 3700mL
Pump
- power consumption: 18W
- max. flow rate: 8L/min
- max. head: 6m
Proportional valve: Kvs: 0,7m³/h
Pressure sensor: 0...30mbar (0...300mm)
- process schematic with controller type selection
(manual, continuous controller, two- or three-point
controller, programmer)
- time functions
- simulation function
- disturbance variable input
Dimensions and Weight
LxWxH: 600x450x800mm
