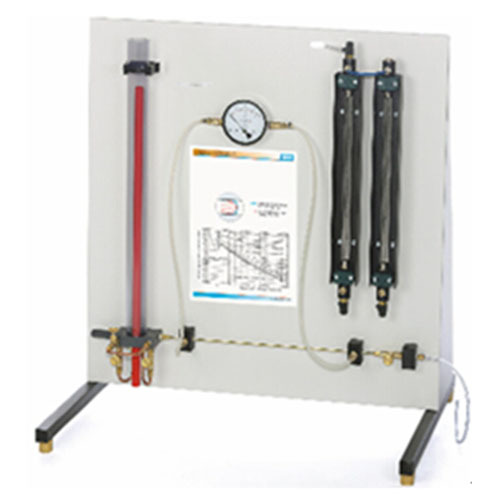

ZM7119 Laminar flow Visualization Unit Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment1.Technical data
Pump with adjustable speed
- max. flow rate: 20L/min
Bubble generator
- current: 0...200mA
- pause: 8,4...1800ms
- pulse: 8,4...1800ms
3 cathodes with platinum wire
- diameter: 0,2mm
- length: 30, 50, 75mm
Anode, stainless steel plate, L-shaped
Water channel: approx. 6L
Illumination: white LEDs on the side walls of the water channel
Dimension (approx.): LxWxH: 900x300x220mm (experimental unit) Weight: approx. 24kg
2.Related experiment
- how differently shaped weirs affect the flow
- visualisation of streamlines for flow incident to a weir
- visualisation of streamlines when flowing around various drag bodies
