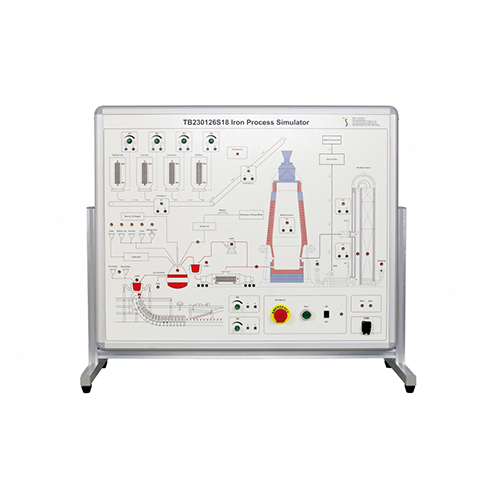

TB230126S18 Iron Process Simulator Didactic Equipment Vocational Education Equipment Process Control Trainer
I.Product Overview
1.1 Product Description
The Iron Process Simulator is an intelligent simulation device developed for the metal processing industry (especially cast iron, forging, heat treatment and other processes). It simulates the behavior of iron-based materials in the entire process of smelting, forming, cooling, etc. through a high-precision model.
1.2 Product Features
By simulating the real operating console interface, trainees can complete the whole process training such as smelting control and hot blast furnace heating operation through simulation equipment.
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: single-phase three-wire AC 220V ±10% 50Hz
2.2 Dimensions and Weight
Dimensions: 960mm*410mm*830mm
Weight:<30kg
III.Product Component Names and Function Introduction
3.1 Product Main Part
|
No.
|
Name
|
Quantity
|
|
1
|
Frame
|
1
|
|
2
|
Operation panel
|
1
|
3.2 Product Accessories Part
|
No.
|
Name
|
Quantity
|
|
1
|
2 mm electrical cable 100cm black
|
10
|
|
2
|
2 mm electrical cable 100cm yellow
|
10
|
|
3
|
USB Cable
|
1
|
IV.Experiment List
Experiment 1 Iron process simulation experiment
