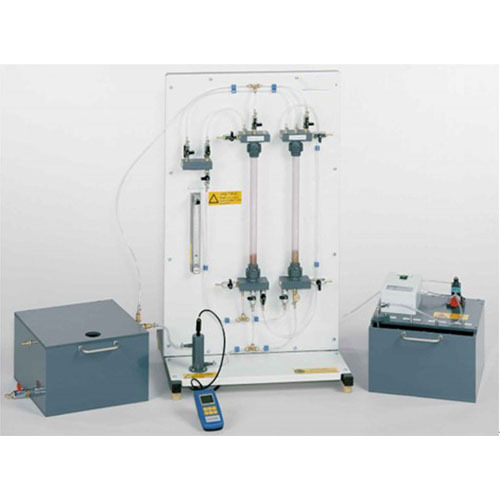

ZM9108 Ion Exchange Unit Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment
1.Specification
Softening and desalination with ion exchange
2. cation and anion exchangers usable separately and in combination
3. regeneration of ion exchangers
4. tank with chambers for raw water, rinsing water, acid and caustic
5. diaphragm pump to transport raw water, rinsing water, acid and caustic
6. collecting tank for treated water, rinsing water, acid and caustic
7. continuous measurement of conductivity and flow rate

2.Technical data
Composition
□ Pump: self-priming, diaphragm type
1 Flowmeter range: 10-80cc/min/300mL/min 1 Sump tank capacity: 30 liters, made of AISI316 stainless steel
□ Anion exchange resin: 1 liter
□ Cation exchange resin: 1 liter
□ Chemicals required: sodium chloride - hydrochloric acid - sodium hydroxide
1 Portable conductivity meter
□ Portable pHmeter
3. Required services
1 Electrical power: 220/240V, single-phase, 50 Hz
4. Weight and dimensions
□ Dimensions: 1100x450x900 h mm 1 Gross weight: 100 kg
