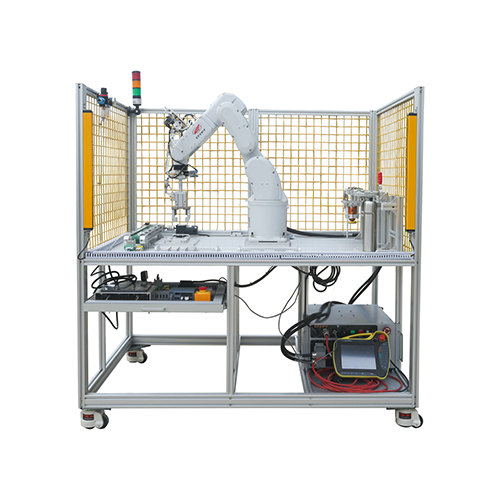

Industrial Robot System Mechatronics Training Equipment Teaching Equipment Vocational Training Equipment

SR6114 Industrial Robot System Mechatronics Training Equipment Teaching Equipment Vocational Training Equipment
1. Overview of equipment functions
The industrial robot application programming training device is designed in a modular manner, and the system is integrated into industrial robot technology, mechanical transmission technology, multiple operation technologies, intelligent sensing technology, programmable control technology, electrical automation, intelligent sensing, intelligent manufacturing, etc. Subject expertise.
3. Technical parameters
1. Input power: AC220V±10%50Hz
2. Input voltage: ≤5kw
3. Working environment: temperature: -10℃~+40℃; 2) relative humidity: ≤90% (+20℃); 3) altitude: ≤4000m; 4) clean air, no corrosive and explosive gas, no Conductive and insulating dust
4. Equipment structure
4.1 Industrial Robot
1-I/O board
2-teach pendant cable socket
3-Ethernet interface
4-Servo power-on confirmation button/indicator
5- Emergency stop button
6-Power switch
7-Power cord socket
8-Robot cable socket
4.2 Tool rack
4.3 Polishing module
4.4 Trajectory module
4.5 Palletizing module
4.6 Transport module
4.7 Teach pendant, touch screen
5. Basic training items
Experiment 1 Polishing and polishing experiment
Experiment 2 Trajectory experiment
Experiment 3 Palletizing experiment
Experiment 4 Handling experiment
