ZM9112 Impact of a Jet Apparatus Didactic Equipment Vocational Training Equipment Fluid Mechanics Lab Equipment
1. Equipment Introduction
1.1 Overview
Equipment used to study the principle of linear momentum of jet forces on deflectors, demonstrating four interchangeable deflectors with different deflection angles. During the deceleration, acceleration and deflection of the flowing fluid, the velocity and therefore the momentum will change. Change, change in momentum creates force. In practice, power is used to convert kinetic energy into work.

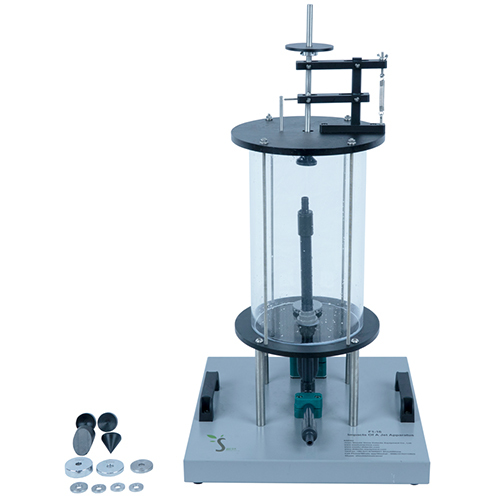

The experimental setup consists of a transparent container, a nozzle, four interchangeable deflectors with different deflection angles and a load-bearing scale. The force of the water spray is adjusted through flow matching.
1.2 Features
1. The base adopts a frame structure and is equipped with a handle.
2. Equipped with weights of different weights for testing different jet pressures
2. Technical Parameters
Overall dimensions: 462mm*462mm*700mm
Jet outlet: 10mm
Weight weight: 10g 20g 50g 100g
Maximum height of water tank: 330mm
Maximum moving distance of ruler: 80mm
3. Components List And Detailed Introduction
3.1 Main part:
|
No
|
Name
|
|
1
|
Weight plate
|
|
2
|
wing nut
|
|
3
|
Flat module
|
|
4
|
Outlet pipe
|
|
5
|
water tank
|
|
6
|
floor drain
|
3.2 Equipment Configuration List:
|
No
|
Name
|
Qty
|
|
Component1
|
10g weight
|
3
|
|
Component2
|
20g weight
|
1
|
|
Component3
|
50g weight
|
1
|
|
Component4
|
100g weight
|
1
|
|
Component5
|
200g weight
|
1
|
|
Component6
|
Tapered module
|
1
|
|
Component7
|
Bevel module
|
1
|
|
Component8
|
concave module
|
1
|
|
Component9
|
Flat module
|
1
|
|
Component10
|
Device body
|
1
|
3.3 Accessories
|
No
|
Name
|
Qty
|
|
1
|
concave module
|
1
|
|
2
|
Tapered module
|
1
|
|
3
|
Bevel module
|
1
|
|
4
|
Flat module
|
1
|
|
5
|
10g weight
|
3
|
|
6
|
20g weight
|
1
|
|
7
|
50g weight
|
1
|
|
8
|
100g weight
|
1
|
|
9
|
200g weight
|
1
|
4. Experiment list
Experiment 1 Flat-bottomed module jet experiment
Experiment 2 Pointed bottom module jet experiment
Experiment 3 Concave bottom module jet experiment
Experiment 4 Sloped bottom module jet experiment
