1. Equipment introduction
The effects of hydrostatic pressure are of importance in many fields of engineering, such as shipbuilding, construction of dams, weirs and locks, and sanitary and building services engineering.
With the HM 150.05A hydrostatic pressure gauge, the following key topics can be studied experimentally:
·Pressure distribution in liquid considering gravity
·The "lateral force" of hydrostatic pressure
·Lateral force pressure center
The appendix to this test description contains prepared worksheets to facilitate systematic evaluation of experimental results.
2. Technical data
Dimensions: length x width x height 400x500x360 mm
Measuring container capacity: about 1.8 liters
Weight: about 10kg

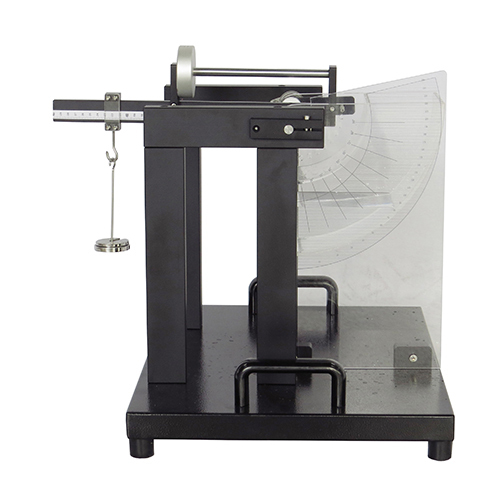

3.Components
|
No
|
Name
|
|
1
|
water container
|
|
2
|
Braking device
|
|
3
|
slider
|
|
4
|
stop pin
|
|
5
|
water level scale
|
|
6
|
Weight hook
|
|
7
|
weight
|
|
8
|
handle
|
4. Experiment list
Experiment 1 Pressure Center Theory
Experiment 2 The center of pressure when the water container is positioned vertically
Experiment 3 The center of pressure when the water container is tilted
Experiment 4 The pressure center of the water container when positioned at 90°
