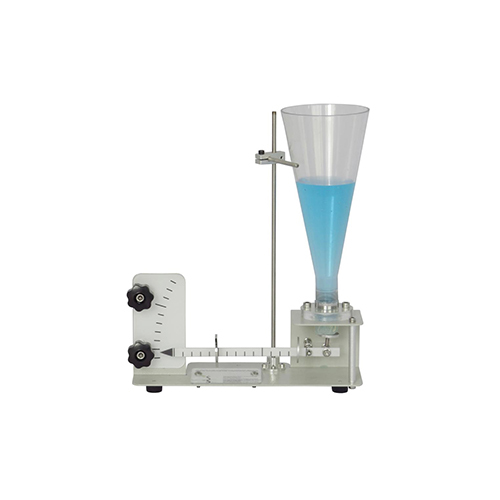

TB-231226-V-158 Hydrostatic Paradox Masson Pascal Apparatus For Hydrostatic Paradox Didactic Equipment Vocational Training Equipment Fluid Mechanics Lab Equipment
1. Equipment introduction
1.1 Overview
This device mainly allows students to understand the application of Pascal's principle in life, allowing students to understand Pascal's principle more clearly and intuitively.
1.2 Features
1. With a variety of different containers, more experiments can be carried out.
2. With dye, you can see the water level more clearly.
3. The scale plate has two rotating handles, and the height can be adjusted at will.
4. Comes with a set of inner hexagonal and marking optical axes for adjusting the water level, making it easy to maintain the device.
2. Technical parameters
size: 350mm*210mm*220mm
weight: <50kg
3. Components list and detailed introduction
3.1 Main part:
|
No
|
Name
|
|
1
|
Adjustment handle
|
|
2
|
scale plate
|
|
3
|
optical axis
|
|
4
|
scale
|
|
5
|
container
|
3.2 Accessories
|
No
|
Name
|
Qty
|
|
1
|
Counterweight
|
2
|
|
2
|
measuring cup
|
1
|
|
3
|
dye
|
1
|
|
4
|
inner hexagon
|
1
|
|
5
|
container
|
4
|
4. Experiment list
Experiment 1 Pressure test with counterweight
Experiment 2 Pressure test without counterweight
