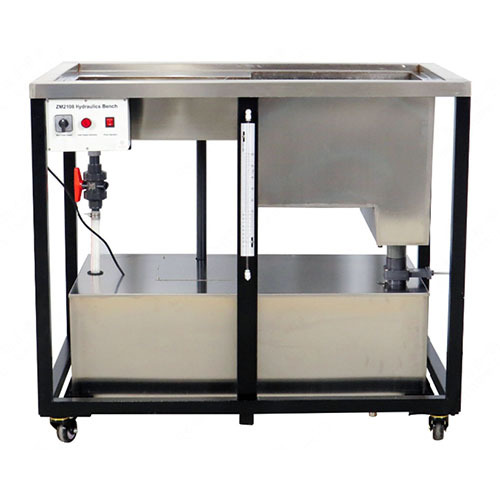

ZM2108 Hydraulics Bench Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipment1.1 Product Description
The application of the Fluid Basic Platform in the field of teaching aims to show students the basic principles of fluid mechanics and water treatment technology in an intuitive and practical way. By simulating the actual water supply system, the platform uses pipes to transport water to the model equipment and controls the valves to demonstrate the adjustment of flow and head. This not only meets the needs of different teaching scenarios, but also realizes the self-circulation of water, providing students with an environmentally friendly and efficient learning tool.
1.2 Product Features
The main structure of the Fluid Basic Platform for Education is welded with stainless steel plates. This material selection ensures the high load-bearing capacity and excellent corrosion resistance of the equipment, so that it can maintain stability and durability under frequent use and long-term exposure to various environmental conditions. In addition, the refined implementation of the welding process also provides students with examples of learning modern manufacturing technology.
The valves equipped with the platform can accurately control the flow and head of water. This adjustable function allows teachers to set different operating parameters according to teaching needs, thereby showing specific examples of complex fluid behavior. By manually or automatically controlling the valves, students can directly observe and understand the impact of flow changes on the system and enhance their mastery of fluid dynamics theory knowledge.
In summary, the Fluid Basics Platform is an innovative and comprehensive teaching aid in the field of teaching. It not only helps students understand and apply the knowledge of fluid mechanics, but also cultivates their ability to solve practical engineering problems. Through interactive and practical learning, the platform greatly improves students' learning efficiency and interest, and lays a solid foundation for their future in-depth learning and career development in the field of engineering technology.
2. Technical specifications
2.1 Technical parameters
Input power: AC220V 50Hz
Working conditions: Ambient temperature: -10℃～+40℃ Relative humidity: <85% (25℃)
2.2 Dimensions and weight
Dimensions 1:1290mmx850mmx1250mm
Weight 1:About 108 kgs
3. Product component names and function introduction
3.1 Product main body
|
No.
|
Name
|
|
1
|
Power Box
|
|
2
|
Water volume indicator (L)
|
|
3
|
Ball valve
|
|
4
|
Gate valve
|
|
5
|
Water pump
|
|
6
|
Upper water tank
|
|
7
|
Overflow port
|
|
8
|
Lower water tank
|
3.2 Product electrical part
|
No.
|
Name
|
|
1
|
Main power switch
|
|
2
|
Power indicator light
|
|
3
|
Water pump switch
|
3.3 Product accessories
|
No.
|
Name
|
|
1
|
Stopwatch
|
|
2
|
Measuring cup 2000ML
|
4. Product Configuration List
|
No.
|
Name
|
Qty
|
|
1
|
Water pump
|
1
|
|
2
|
Stopwatch
|
1
|
|
3
|
Measuring cup
|
1
|
|
4
|
Main power switch
|
1
|
|
5
|
Power indicator light
|
1
|
|
6
|
Water pump switch
|
1
|
|
7
|
Ball valve
|
1
|
|
8
|
Electrical box
|
1
|
5. Product teaching experiment list
This device is a device for fluid experiments. It only provides a suitable experimental site for fluid experiments. The specific fluid experiments that can be completed need to be carried out with experimental modules. This manual only provides the basic operations of the fluid basic experimental module.
(1) Flow measurement experiment
