H1F Hydraulic Bench With Digital Flow Measurement Didactic Equipment Vocational Education Equipment Fluid Mechanics Lab Equipment
1. Product Introduction
1.1 Product Description

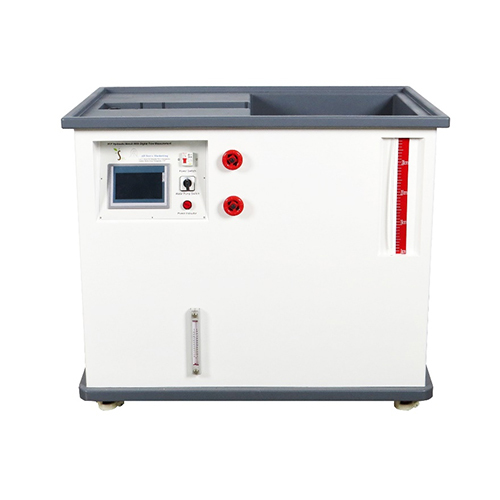

The H1F hydraulic bench with digital flow measurement is a basic device for fluid experiments. It can form a closed water circuit and measure real-time flow data and flow change curves. The closed water circuit consists of a bottom water tank with a powerful submersible pump and a measuring tank arranged above, in which the return water is collected. The top work surface enables various experimental devices to be positioned easily and safely. A small water tank is integrated in the work surface to facilitate return water.
1.2 Product Features
1. The device adopts a reliable electrical layout and has excellent safety.
2. The device is modular and can be used with other experimental modules.
3. The device uses more durable materials, which can greatly extend the service life of the device.
4. The device supports digital functions and can display data in real time.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: single-phase three-wire AC220V 50-60Hz.
Submersible pump power: 250W.
Submersible pump maximum head: 7.5m.
Submersible pump maximum flow: 9.0m³/H.
Touch screen parameters: power supply is DC24V, 9-way current analog 0-20mA; current analog output, relay output, with 2-way 485 communication.
Pipe interface diameter: 25mm diameter.
Working environment conditions: ambient temperature -10℃～+40℃, relative humidity <85% (25℃).
2.2 Dimensions and weight
Dimension: 1330mm×850mm×1140mm
Weight: 108kg
3. Product component names and function introduction
3.1 Product main body
|
No.
|
Name
|
|
1
|
Water outlet interface
|
|
2
|
Experimental flow channel
|
|
3
|
Experimental table
|
|
4
|
Return water collection chamber
|
|
5
|
Touch screen
|
|
6
|
Circuit breaker
|
|
7
|
Water pump control switch
|
|
8
|
Power indicator
|
|
9
|
Experimental flow control valve
|
|
10
|
Diverter flow control valve
|
|
11
|
Water level meter
|
|
12
|
Thermometer
|
|
13
|
Universal caster
|
3.2 Product accessories
|
NO.
|
Name
|
|
1
|
Power cable
|
|
2
|
Tube
|
|
3
|
Clamp
|
4. Product Configuration List
|
No.
|
Name
|
Qty
|
|
1
|
Hydraulic workbench with digital flow measurement
|
1 set
|
|
2
|
Touch screen
|
1 Pcs
|
|
3
|
Circuit breaker
|
1 Pcs
|
|
4
|
Submersible pump
|
1 Pcs
|
|
5
|
Needle valve
|
1 Pcs
|
|
6
|
Thermometer
|
1 Pcs
|
|
7
|
Single control switch
|
1 Pcs
|
|
8
|
Indicator
|
1 Pcs
|
|
9
|
Castor
|
4 Pcs
|
|
10
|
Power cord
|
1 Pcs
|
|
11
|
Tube
|
1 Pcs
|
|
12
|
Hose
|
2 Pcs
|
5. Product teaching experiment list (see the experiment guide for details)
(1) H1F hydraulic workbench with digital flow measurement pipeline connection experiment.
(2) H1F hydraulic workbench with digital flow measurement correct use tutorial experiment.
(3) H1F hydraulic workbench with digital flow measurement correct water filling and drainage experiment.
