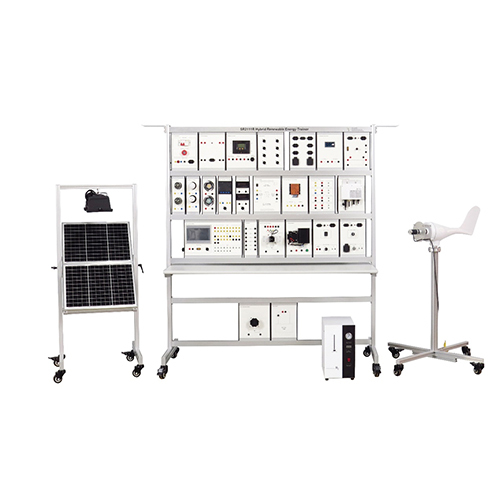

SR2111R Hybrid Renewable Energy Trainer Didactic Equipment Vocational Training Equipment Renewable Training Equipment

1. Product Introduction
1.1 Product Description
Renewable energy includes solar energy, wind energy, hydrogen energy, etc. They can be recycled in nature and are an inexhaustible source of energy.
SR2111R Hybrid Renewable Energy Trainer is a device used to learn various forms of renewable energy utilization. The product can teach and demonstrate three different types of renewable energy utilization forms, namely solar energy, wind energy and hydrogen energy. Solar energy can use simulated light sources (halogen lamps) for power generation, wind energy teaching in bladeless form, and hydrogen generators and hydrogen fuel cells for power generation teaching. The product provides a variety of load and power measurement devices, which can be used for a variety of interesting experiments. We have also added digital functions to the product, which can obtain experimental data in real time through a computer, such as voltage or current, and even remote product control.
1.2 Product Features
1. The product is beautiful, atmospheric, sturdy and durable.
2. The product is equipped with a complete set of experimental modules, which can be used for rich and interesting teaching experiments.
3. The product has excellent safety design.
4. The product supports digitalization and remote control.
2. Technical specifications
2.1 Technical parameters
Main power supply parameters: AC220V 50-60Hz
Battery voltage: DC12V;
Photovoltaic panel parameters: voltage DC12V; power 30W; size 520*410;
Adjustable disk resistance parameters: resistance 0-1KΩ; power 100W;
Inverter parameters: input DC12V; output AC220V 50HZ; power 500W~1000W;
Micro grid-connected inverter parameters: voltage AC220V; power 300W;
Solar controller parameters: type PWM; voltage 12/24V; current 10A;
Fuel cell parameters: power 30W; voltage 7-8V;
Hydrogen generator parameters: rate 300ml/min;
Simulated solar light source parameters: power 500W;
Wind turbine parameters: output three-phase AC12V; power 200W;
Wind turbine controller parameters: input three-phase AC12V; power 200W; output DC12V;
Working environment conditions: ambient temperature -10℃～+40℃, relative humidity <85% (25℃).
2.2 Dimensions and weight
Dimension 1:1680mm*870mm*2010mm
Weight 1:174kg
Dimension 2:1150mm*960mm*1570mm
Weight 2:82kg

3. Product component
3.1 Product main part

3.2 Product accessories

4.Product Configuration List
5. Product teaching experiment list
(1) Hydrogen fuel cell power generation experiment
(2) Electronic potentiometer experiment
(3) In manual mode, use photovoltaic panels to perform DC output experiment
(4) In PC mode, use photovoltaic panels to perform DC output experiment
(5) When the light intensity is weak, automatically switch to off-grid inverter state experiment
(6) Grid-connected inverter power generation experiment
(7) In manual mode, use wind turbine to perform DC output experiment
(8) In manual mode, use wind turbine to perform battery charging experiment
(9) In PC mode, use wind turbine to perform battery charging experiment
(10) Experiment of collecting numerical values of AC and DC measurement module through PC software
(11) Experiment of collecting numerical values of AC and DC measurement module through PC software
(12) Experiment of collecting numerical values of isolation measurement module through PC software
(13) Experiment of exporting collected data through PC software
