Description

ZMP2106H Hybrid Electro Hydraulic and Electro Pneumatic Equipment Mechatronics Trainer Didactic Equipment Vocational Training Equipment
1. Equipment introduction
1.1 Overview

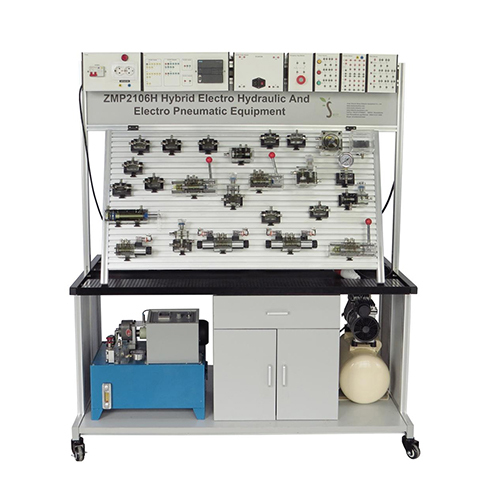

ZMP2106H hybrid electro-hydraulic electro-pneumatic equipment adopts a double-sided structure, that is, one experimental bench provides students with a place for pneumatic and hydraulic experiments at the same time. It can conduct double-sided comprehensive pneumatic and hydraulic experiments at the same time, optimizing shared resources and improving product performance.
Through this set of practical training equipment, you can conduct pneumatic control and hydraulic control circuits and their corresponding basic application experiments. It can also be integrated with each other to conduct the following experiments: realize gas-electric control, gas-liquid control, electric-hydraulic control, and gas-electric-hydraulic integrated control.
1.2 Features
(1) This system can be used to design pneumatic and hydraulic circuits and learn pneumatic and hydraulic control technology.
(2) T-shaped slot aluminum platform enables quick connection of components.
2. Technical parameters
Total power input: three-phase AC220V
Size: 1550mm*860mm*1800mm
Weight: <282kg
Working conditions: Temperature -10℃~+40℃, relative humidity <85% (25℃)

3. Components list
3.1 Hydraulic main part

No

Name

1

Frame

2

Basic components (integrated tool box, hydraulic station, oil pan)

3

Universal wheel

4

Power supply hanging box

5

PLC hanging box

6

DC24 power supply hanging box

7

Emergency stop button hanging box

8

Button hanging box

9

Relay hanging box

10

Operation panel

3.2 Hydraulic components

No
Name
1
Two-position four-way manual valve (transparent)
2
Three-position four-way manual valve (transparent)
3
Two-position four-way solenoid valve (single) (transparent)
4
Two-position four-way solenoid valve (double) (transparent)
5
Three-position four-way solenoid valve (double) (transparent)
6
One-way sequence valve (transparent)
7
One-way pressure reducing valve (transparent)
8
Pilot-operated check valve (transparent)
9
One-way throttle valve (transparent)
10
Throttle valve with pressure compensation (transparent)
11
Bidirectional hydraulic motor (transparent)
12
Double-acting cylinder with stroke collision block (transparent)
13
Pressure gauge (transparent)
14
Three-way valve (transparent)
15
Hydraulic auxiliary oil tank (transparent)
16
Hydraulic hose
3.3 Pneumatic main part
No
Name
1
Frame
2
Basic components (integrated tool box, air pump, oil pan)
3
Universal wheel
4
Operation panel
5
Power supply hanging box
6
DC24 power supply hanging box
7
PLC hanging box
8
Relay hanging box
9
Time relay hanging box
10
Button hanging box
11

Emergency stop button hanging box

12

Buzzer hanging box (not marked in the picture)

3.4 Pneumatic components

No

Name

1

Three-position five-way manual valve

2

Two-position three-way solenoid valve

3

Two-position five-way solenoid valve

4

Three-position five-way solenoid valve

5

delay valve

6

Knob button valve

7

Quick exhaust valve

8

Two-position three-way stroke valve

9

Micro Switch

10

Limit switch

11

Single port three-position valve

12

Pneumatic travel switch mechanical valve

13

One-way throttle valve

14

doublet

15

Double pressure valve

16

Pneumatic multi-pipe exhaust

17

capacitive sensor

18

Inductive sensor

19

Photoelectric Sensors

20

trachea

21

single acting cylinder

22

Double acting cylinder

23

Flat head button type three-position valve

24

Pressure transmitter with digital display

3.5 Accessories

No

Name

Qty

1

2mm safety connection cable (red)

20

2

2mm safety connection cable (blue)

20

3

2mm safety connection cable (black)

20

4

2mm safety connection cable (yellow)

20

5

2mm safety connection cable (green)

20

6

Insurance tube (3A)

5

7

Insurance tube (10A)

5

8

raw tape

1

9

4mm safety connection cable (yellow)

1

10

4mm safety connection cable (blue)

1

11

European plug

1

12

European power cord

2

4. Experiment list
Experiment 1 Hydraulic Station Introduction Experiment
Experiment 2 Two-position four-way manual valve operation experiment
Experiment 3 Three-position four-way manual valve operation experiment
Experiment 4 Two-position four-way solenoid valve operation experiment
Experiment 5 Three-position four-way solenoid valve operation experiment
Experiment 6 One-way pressure reducing valve operation experiment
Experiment 7 Pilot check valve (hydraulic control one-way valve) operation experiment
Experiment 8 Research on the relationship between throttle valve opening and closing and pressure difference
Experiment 9 Hydraulic motor operation experiment
Experiment 10 Delay valve operation experiment
Experiment 11 Flat head button type three-position valve operation experiment
Experiment 12 Knob button valve operation experiment
Experiment 13 Micro switch operation experiment
Experiment 14 Three-position five-way solenoid valve operation experiment
