HSI Training System Refrigeration and Air Conditioning Technology Base Unit Educational Equipment Refrigeration Trainer Didactic Equipment

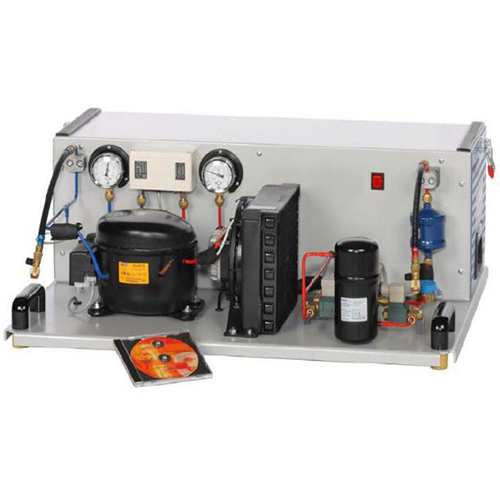

SR2011 HSI Training System Refrigeration and Air Conditioning Technology Base Unit Educational Equipment Refrigeration Trainer Didactic Equipment
Brand: ShouldShine
Model: SR2011
Learning Objectives / Experiments
In conjunction with refrigeration model, refrigeration system with freezing stage,simple air conditioning system, air conditioning model
- fundamentals of the refrigeration cycle
- fundamentals of air conditioning
- components in a refrigeration system/air conditioning system
- system operation
- fault finding
Specification
[1] basic experiments on the operation of refrigeration and air conditioning systems by combining the base unit and models
[2] training system with HSI technology
[3] condensing unit consisting of compressor, condenser and receiver
[4] connection between condensing unit and model via refrigerant hoses
[5] model attached securely with fasteners
[6] manometer for refrigerant with temperature scale
[7] refrigerant R134a, CFC-free
[8] system control via solenoid valves and software
[9] functions of the software: educational software, data acquisition, system operation

Technical Data
Condensing unit
- refrigeration capacity: 340W at 0/32°C
Measuring ranges
- temperature: 1x -50...50°C, 3x 0...100°C
- pressure
1x intake side: -1...9bar
2x delivery side: -1...15bar
Dimensions and Weight
LxWxH: 830x650x320mm
Weight: approx. 60kg
Required for Operation
230V, 50/60Hz, 1 phase or 120V, 60Hz/CSA, 1 phase
