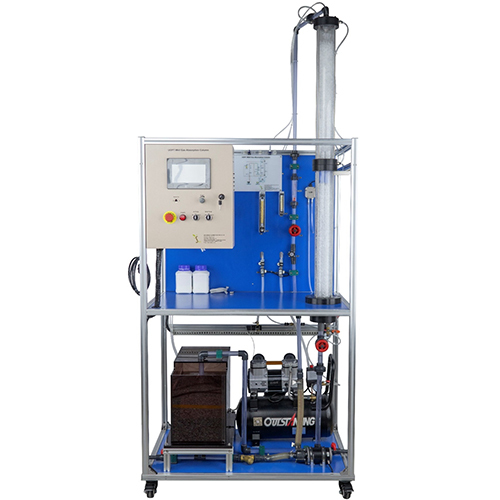

UOP7 Gas Absorption Column Didactic Equipment Vocational Education Equipment Fluid Mechanics Lab Equipment
I.Product Overview
1.1 Overview
Since the Industrial Revolution, human activities have led to a dramatic increase in the concentration of greenhouse gases in the atmosphere. Carbon dioxide, if not the most abundant gas among them, is the most problematic of these gases. In fact, its concentration is so high that its contribution accounts for two-thirds of the total contribution of warming gases.
In order to alleviate the concentration of CO2 in the atmosphere, the focus is on controlling the flue gas at the outlet of power plants. In fact, 75% of the substantial increase in atmospheric CO2 over the past few decades is attributable to the burning of fossil fuels for electricity generation.
Industry has responded to help reduce CO2 emissions, and currently the most advanced method of capturing CO2 from flue gases is absorption towers using amine absorbers. But this method has disadvantages, and in this context, research is conducted to develop new CO2 capture methods.
1.2 Features
In the equipment, the chemical absorption of CO2 by sodium hydroxide solution is used to analyze the CO2 content in the gas absorption columns to compare their efficiency in capturing CO2 from the flue gas.
II.Performance Parameter
Input power: AC220V±10% 50Hz
Weight:<200kg
Working conditions: Ambient temperature -10℃～+40℃ Relative humidity <85% (25℃)
Size: 1380 * 880 * 2180 (mm)
III.Components List and Detailed Introduction
3.1 Main part
|
Number
|
Name
|
|
1
|
Frame
|
|
2
|
Water tank
|
|
3
|
Accessories
|
|
4
|
Power box
|
|
5
|
Gas absorption column
|
|
6
|
Differential pressure transmitter
|
|
7
|
Water flow meter
|
|
8
|
CO2 flow meter
|
|
9
|
Air flow meter
|
|
10
|
Electronic water flow meter
|
|
11
|
Electronic gas flow meter
|
|
12
|
Air compressor
|
|
13
|
Water pump
|
3.2 Power box part
|
Number
|
Name
|
|
1
|
Emergency button
|
|
2
|
Power Indicator
|
|
3
|
Solenoid valve switch knob
|
|
4
|
Water pump switch knob
|
|
5
|
Network port
|
|
6
|
Water pump speed knob
|
|
7
|
Key
|
|
8
|
Touchscreen
|
3.3 Equipment configuration list
|
Number
|
Name
|
Quantity
|
|
Component 1
|
Water flow meter
|
1
|
|
Component 2
|
Air flow meter
|
1
|
|
Component 3
|
CO2 gas flow meter
|
1
|
|
Component 4
|
Differential pressure transmitter
|
2
|
|
Component 5
|
Carbon dioxide transmitter
|
1
|
|
Component 6
|
Water pump
|
1
|
|
Component 7
|
Filter
|
1
|
|
Component 8
|
PVC gate valve
|
2
|
|
Component 9
|
Temperature Sensor
|
2
|
|
Component 10
|
Solenoid valve
|
1
|
|
Component 11
|
Air pressure regulating valve
|
1
|
|
Component 12
|
Electronic gas flow meter
|
2
|
|
Component 13
|
Electronic water flow meter
|
1
|
|
Component 14
|
Air compressor
|
1
|
3.4 Accessories
|
Number
|
Name
|
Quantity
|
|
1
|
U disk
|
1 piece
|
|
2
|
Cable
|
1 piece
|
|
3
|
Sodium hydroxide
|
2 bottles
|
IV.Experiment List
Experiment 1 Chemical reaction experiment between sodium hydroxide solution and CO2
Experiment 2 Determination of water, CO2 and air flow and temperature
Experiment 3 PID control system
Experiment 4 Use of gas absorption column equipment software
Experiment 5 Measure the CO2 concentration at the gas inlet and outlet
Experiment 6 Sensor Calibration
Experiment 7 Investigate the fundamentals of using packed columns to absorb gases into liquids
