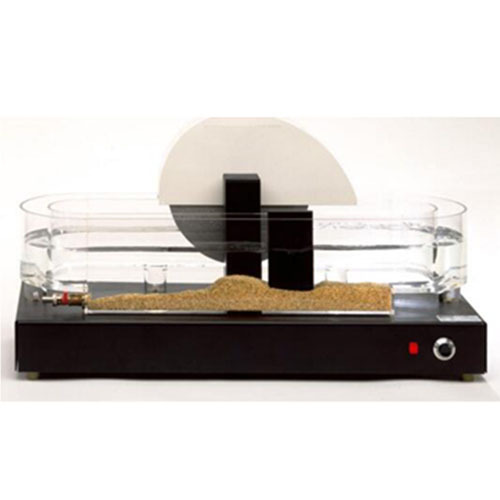

ZM7155 Fundamentals of Sediment Transport Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipmentexperimental unit for bed-load transport in open channels
transparent, circular, oval flow channel as open channel
variable-speed paddle to generate the flow velocity
experimental section with transparent deepening for holding the sediment
low-turbulence flow at the inlet to the experimental section thanks to a flow straightener
paddle driven via electric motor and belt drive
three different bridge piers for observing fluvial obstacle marks on piers
Technical data
Experimental section
- length: 660mm
- cross-section WxH: 50x200mm
- deepening: 50mm
Flow channel
- height: 150mm
- width: 50...72mm
Paddle
- 12 blades
- diameter: 330mm
- speed at the paddle: 5,2...70min-1
Flow velocity: approx. 0...1m/s
Dimension and weight
LxWxH: 1030x410x560mm
Weight: approx. 42kg
