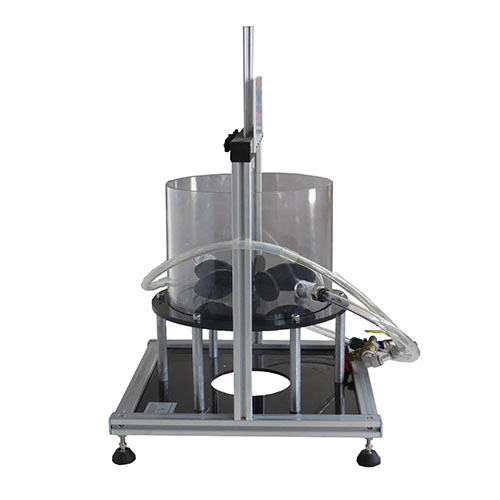

ZM7118 Free and Forced Vortices Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment1.Technical data
Tank (approx.data):
- diameter: 250mm
- height: 190mm
4 inserts for the water drain
- diameter: 8, 12, 16 and 24mm
Impeller with 3 blades
Vertical point gauge
- 6 movable rods
Horizontal point gauge
- 2 movable rods
Measuring tube, movable
- horizontal 0...90mm, vertical 70...190mm
- diameter: 4mm
Dimensions
Weight: approx. 18kg
Remark: don’t contain water source, if add, price will change.
2.Related experiment
-demonstration of the principle of linear momentum
-- study of the jet forces
-- influence of flow rate and flow velocity
-- influence of different deflection angles
