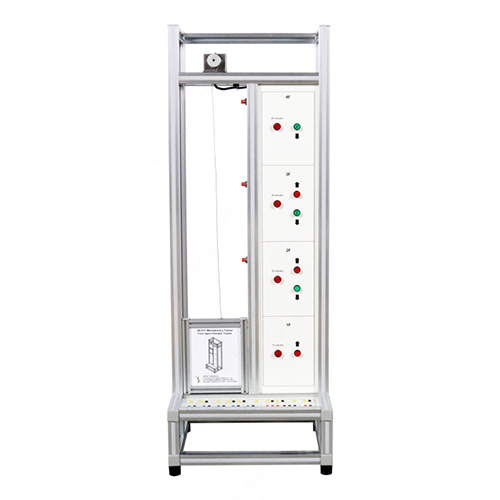

ZE3311 Four-Layer Elevator Trainer Equipment Educational Technology Educational Workbench Electrical Training Equipment1. Product Introduction
1.1 Product Description
This training platform is a small four-story elevator model with similar functions to actual elevators. It can be controlled by programmable logic or single-chip microcomputer, including PLC, sensor application, position control, sequential logic control and other training contents.
1.2 Product Features
(1) This training platform is developed for the practical application of elevator control technology and can be used with different brands of PLC according to training needs.
(2) It adopts standardized modular design and has 4 cushions at the bottom, which is easy to place.
(3) The power cord and signal line of each component are connected to the safety socket on the board and connected with pluggable cables protected by insulating sheath, which is safe and convenient.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: single-phase AC 220V ±50%
Working environment conditions: ambient temperature -10℃～+40℃ Relative humidity <85% (25℃)
2.2 Dimensions and weight
Dimension 1: 430*380*1170mm
Weight 1: about 10kg
Dimension 2: 368*170*110mm
Weight 2: about 2kg
3. Product component names and function introduction
3.1 Product main part
|
No.
|
Name
|
|
1
|
First floor elevator call indicator light
|
|
2
|
First floor up call button
|
|
3
|
Second floor elevator call indicator light
|
|
4
|
Second floor up call button
|
|
5
|
Second floor down call button
|
|
6
|
Third floor elevator call indicator light
|
|
7
|
Third floor up call button
|
|
8
|
Third floor down call button
|
|
9
|
Fourth floor elevator call indicator light
|
|
10
|
Fourth floor down call button
|
|
11
|
Sensor
|
|
12
|
Elevator
|
|
13
|
Terminal control panel
|
|
14
|
PLC module
|
3.2 Product accessories
|
No.
|
Name
|
|
1
|
Power cord
|
|
2
|
2mm safety electrical cable yellow
|
|
3
|
2mm safety electrical cable green
|
|
4
|
2mm safety electrical cable red
|
|
5
|
2mm safety electrical cable black
|
4. Product Configuration List
|
No.
|
Name
|
Qty
|
|
1
|
ZE3311 Mechatronics Trainer Four layer Elevator Trainer
|
1
|
|
2
|
PLC module
|
1
|
|
3
|
Power cord
|
1
|
|
4
|
2mm safety electrical cable yellow
|
10
|
|
5
|
2mm safety electrical cable green
|
10
|
|
6
|
2mm safety electrical cable red
|
10
|
|
7
|
2mm safety electrical cable black
|
15
|
5. Product teaching experiment list (see the experimental instructions for details)
(1) Elevator call test experiment on different floors
