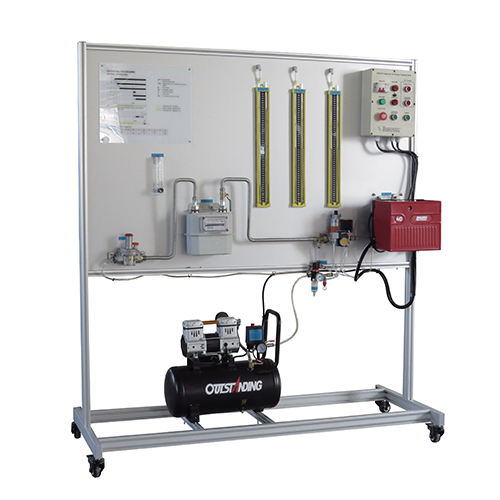

SR3012 Forces Air Gas Burner Training Panel Fridge Training Equipment Didactic Equipment Vocational Training Equipment1. Equipment introduction
1.1 Overview
The training equipment consists of control box, air pump, hand valve, primary pressure reducing valve, safety valve, flow meter, secondary pressure reducing valve, gas meter, hand valve, gas valve group, throttle valve, burner, pressure gauge It can learn the nominal load adjustment of gas burners, fault finding and repair, calculation of gas flow/operating volume, etc., master its principles and control methods, and cultivate students' corresponding knowledge and skills. Vocational school and technical school related professional teaching and skills training assessment.
1.2 Features
(1) The training device adopts an aluminum profile column frame structure, which is simple and elegant as a whole. The bottom is equipped with a universal wheel, which can be flexibly moved and the height can be adjusted independently according to the ground conditions. It is easy to use and not easy to damage.
(2) The operation simulation of the gas burner can be carried out.
(3) Using air instead of natural gas simulation, the burner operates without danger in air.
(4) The training equipment has a good safety protection system.
2. Technical parameters
(1) Input power supply: single-phase AC220V±10% 50Hz
(2) Overall capacity: <2KVA
(3) Weight: <100kg
(4) Working conditions: ambient temperature -10℃～+40℃, relative humidity <85% (25℃)
3. Experiment list
(1) Operation simulation of gas burner
(2) Fault simulation, search and repair
(3) Nominal load adjustment of gas burner
