ZM7134F Fluid Statics and Manometry Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment
1.Structural Specifications:
Stainless structure.
Screws, nuts, plates and all the metallic elements in stainless steel.
Diagram in the front panel with similar distribution to the elements in the real unit.
Quick connections for adaptation to feed hydraulics source.

1.Technical Data:

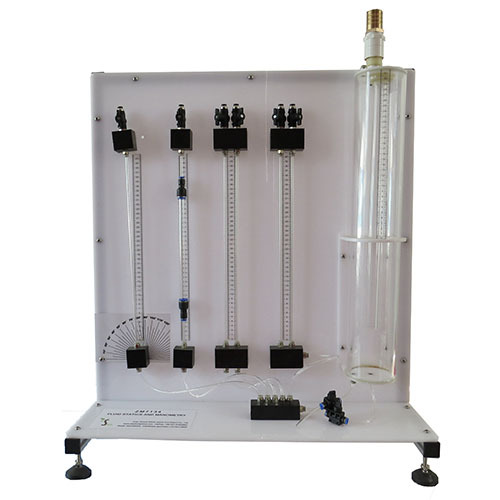

The module is mounted on an aluminum structure and painted steel panels and consists of a
vertical tank (made of methacrylate, diameter: 100 mm and height: 575 mm) containing water
that is connected to different vertical manometer tubes (460 mm length):
One “U” shape vertical tube.
Two parallel vertical tubes.
One vertical tube with variable section.
One vertical tube with a pivot that allows it to incline from 0 to 90º.
These tubes can be used individually or in combination for the different demonstrations.
Vernier hook and point gauge.
Piezometric tube.
Manual air pump.
Purge valve.
Plug to close the tank, so that it is not open to atmospheric pressure.
Dimensions: 700 x 350 x 800 mm. approx...
Weight: 15 Kg. approx.
