1. Product Overview
1.1 Overview
Flow visualization is an important part of scientific computing visualization research. Its main job is to simulate smooth scenes and streamline visualization interactions. Establishing flow field scenes refers to drawing the distribution of various physical quantities in the flow field.
1.2 Features
Frame type base, simple structure. The transparent material is easy to observe experimentally.
There are many accessory modules, which can complete different types of flow visualization experiments.
2. Performance parameters
Dimensions: 860mm * 575mm * 610mm
Dye export caliber: 2mm
Flow channel Length: 590mm Width: 9mm

3. Product Composition

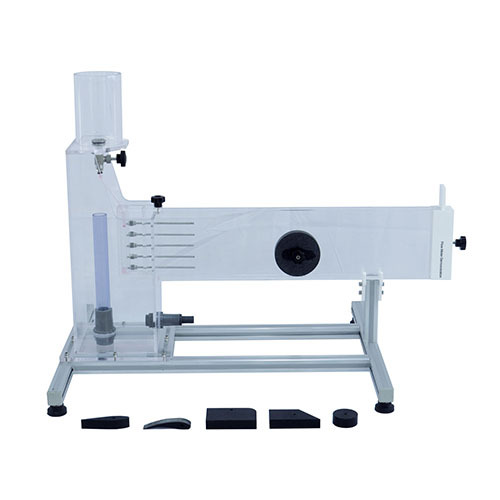

1.Dye bucket
2.Hand valve
3.Water storage tank
4.Flow straightening device
5.Water inlet
6.Tow body
7.Experimental channel
8. Water outlet
4. Experiment Content
Experiment 1 Streamline visualization demonstration under the shuttle module
Experiment 2 Streamline visual demonstration under the circular module
Experiment 3 Streamline visualization demonstration with sharp corner module
Experiment 4 Streamline visualization demonstration under the rectangular module
