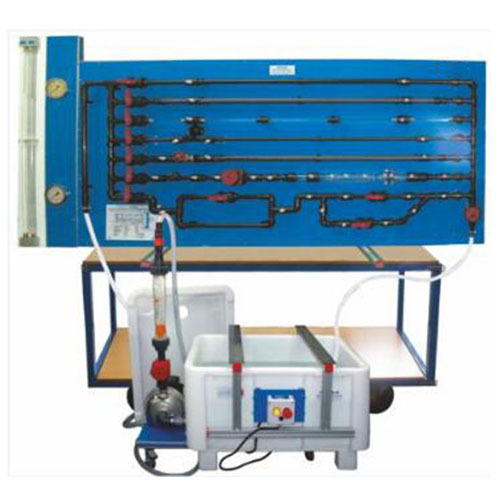

ZM7131 Flow in Pipe Networks Apparatus Fluids Engineering Training Equipment Teaching Equipment Didactic EquipmentA pipe network specifically designed to allow the setting up of a wide range of pipe arrays and the measurement of the flows and pressures using water as the fluid.
A self-contained water supply and volumetric measurement module provides the base for pipe assemblies.
Test pipes:
1 off 22.5mm ID;
2off 17.5mm ID;
2 off 13.0mm ID;
common length 0.7m. Circulating pump: 0.55kW (0.75 HP) centrifugal.
Differential pressure measurements:
1m pressurised water manometer;
1m mercury manometer .
Volumetric flow measurement range: 0-6 litres and 0-40 litres with level indication on remote sight gauge
