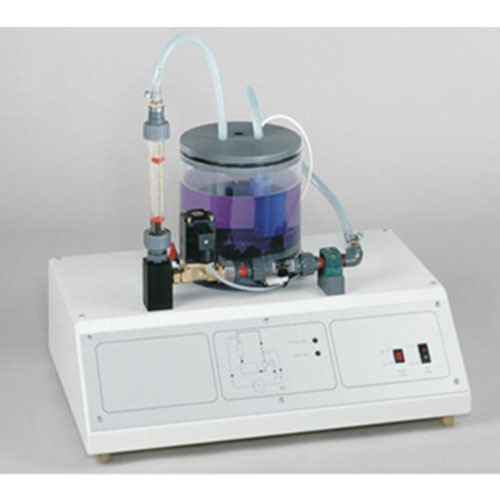

ZM7147 Flow Control Training System Fluids Engineering Training Equipment Teaching Equipment Didactic Equipmentexperimental unit for control engineering experiments
flow control system with variable-area flowmeter
electromagnetic proportional valve as actuator
turbine wheel flow sensor
generation of disturbance variables by altering pump speed
process schematic on front panel
Technical Data
Storage tank
- capacity: approx. 3000mL
Pump
- power consumption: 18W
- max. flow rate: 8L/min
- max. head: 6m
Rotameter: 20...250L/h
Proportional valve: Kvs: 0,7m³/h
Flow sensor: 0,5...3L/min
- process schematic with controller type selection (manual, continuous controller, two- or three-point controller, programmer)
- time functions
- simulation function
- disturbance variable input
Dimensions and Weight
LxWxH: 600x450x600mm
Weight: approx. 21kg
