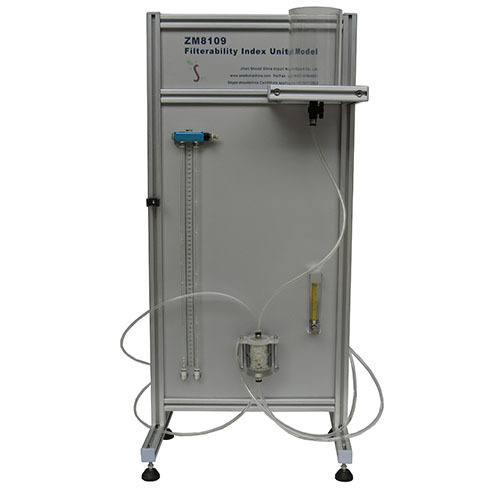

ZM8109 Filterability Index Unit Demonstration Capabilities Fluids Engineering Training Equipment Teaching Equipment Didactic EquipmentBasic principles of filter operation for student studypreliminary assessment of pre-treatment processes andfilter mediacalculation of filterability index number frommeasurements taken
1.Ordering Specification
o Equipment consists of a metal frameworksupporting a 1.5 litre vessel connected by
o transparent tubing to a 60mm high filter unit
o A needle valve controls the flow which isobserved on a variable area flowmeterFlow meter range: 20-280ml/min
o A 0.5m water manometer measures head lossacross the filter
o Test filter cell diameter: 38mm
2.Overall Dimensions
o Height: 0.97m
o Width: 0.45m
o Depth: 0.25m
