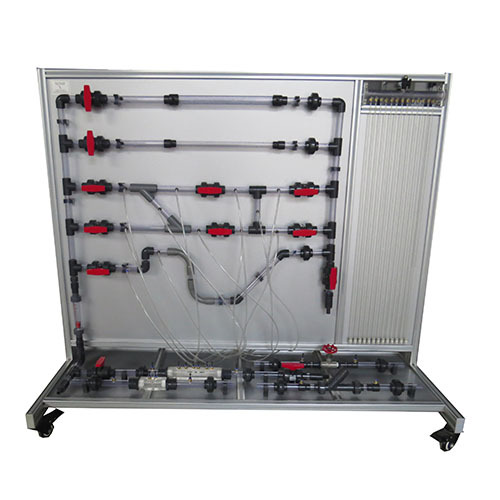

ZM8127 Energy Losses In Turns And Connections Fluids Engineering Training Equipment Teaching Equipment Didactic EquipmentEnergy losses in turns and connections. This accessory allows losses in different bends, a sudden contraction, a sudden enlargement, and a typical control valve to demonstrate. Circuit with four turns of different radii. Enlargement, contraction and shut-off valve, as well as the flow control valve. Hand pump for pressurizing manometers. Quick coupling for easy connection to hydraulic bench.
Tube diameter: 19.48 mm Differential pressure gauge: 0 to 3 bar. Widening diameter: 26.2 mm
Contraction diameter: 19.48 mm
Fittings: 45º tab. Elbow. Short turn. Big turn. Enlargement. Contraction.
Gauge range: 0 to 440 mm
Number of pressure gauge tubes: 12. Differential pressure gauges: 6.
