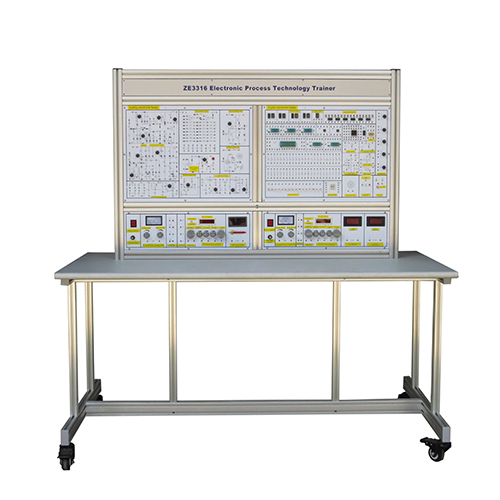

ZE3316 Electronic Process Technology Trainer Didactic Equipment School Equipment Training Electrical Training Equipment1 Product overview
1-1 Overview
1. This product integrates digital circuit and analog circuit training system, which can carry out analog circuit related test and digital circuit test.
2. This product is designed with regulated power supply, AC low voltage current, frequency generator, buzzer, multi-socket, voltage regulator, etc., which provides abundant resources for measurement, debugging and new product development of electronic products.
1-2 Features
1. The equipment adopts a special plug, which is convenient for students to quickly set up the experimental circuit to complete the test.
2, through the use of a variety of electronic components and assembly tools, not only can exercise students' assembly and debugging capabilities, but also can exercise students' curriculum design, graduation design, skill competition and other secondary development capabilities.
2 Performance parameters
(1) Input power: three-phase five-wire system 380V±10% 60Hz
(2) Dimensions: 1300mm × 650mm × 1500mm
(3) Machine capacity: <2KVA
(4) Weight: <250kg
(5) Working conditions: ambient temperature -10 ° C ~ +40 ° C Relative humidity <85% (25 ° C)
3.Experiment list
Experiment 1 Transistor Switching Characteristics, Limiter and Clamp
Experiment 2 Logic function and parameter test of TTL integrated logic gate
Experiment 3 Connection and drive of integrated logic circuits
Experiment 4 Intellectual competition
