1. Product Introduction
1.1 Product Description

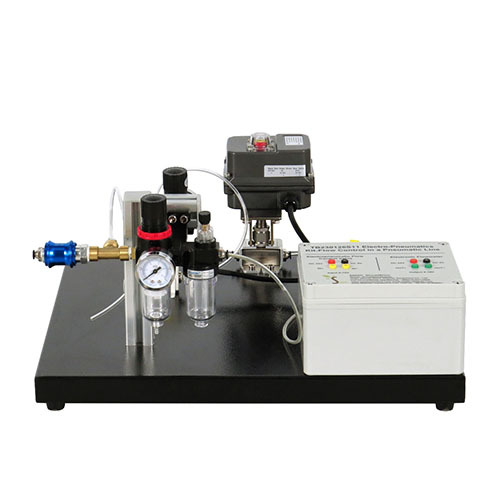

TB230126S11 electric pneumatic kit is a flow control device designed for pneumatic systems. It is used to accurately adjust the flow and pressure of compressed air in pneumatic pipelines. This product combines electric actuators with pneumatic valve technology and is suitable for industrial automation, production line equipment, mechanical control and other fields.
1.2 Product Features
(1) High-precision electric adjustment.
(2) Intelligent functions
(3) Easy installation and maintenance
2. Technical Specifications
2.1 Technical parameters
Power supply parameters: two-wire DC 24V
2.2 Dimensions and weight
Dimensions: 450mm*420mm*220mm
Weight: <15kg
3. Product Component Names and Function Introduction
3.1 Product main body
|
No. |
Name |
Qty. |
|
1 |
Two-piece |
1 |
|
2 |
Junction box |
1 |
|
3 |
Pneumatic intelligent proportional valve |
1 |
|
4 |
Air pressure regulating valve |
1 |
4. Product Teaching Experiment List (see the experiment guide for details)
(1) Flow control experiment in pneumatic pipeline
