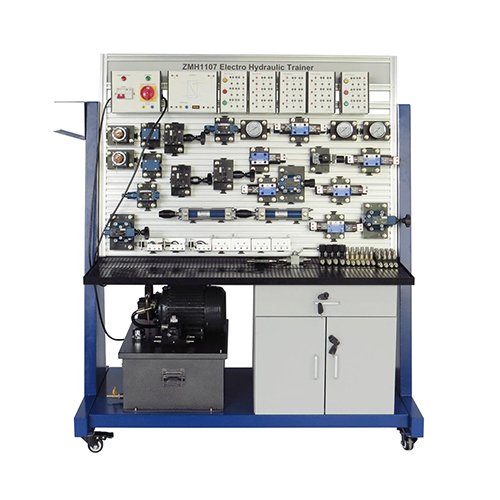

ZMH1107 Electro Hydraulic Trainer Hydraulic Bench Teaching Equipment Vocational Training EquipmentI.Product Overview
1.1 Overview
The ZMH1107 electric hydraulic training bench is equipped with real hydraulic components, such as pumps, valves, actuators, etc., which can be flexibly installed on the operating panel. All joints use open and closed quick connectors at both ends, and allow students to build and test different hydraulic circuits by connecting these components. Through such a training bench, students can better understand the working principle of the hydraulic system and improve their practical skills.
1.2 Features
(1) The system can be used to design hydraulic circuits and learn hydraulic control technology.
(2) The T-slot aluminum platform enables quick connection of components
(3) The equipment is made of a high-strength sheet metal frame, which is beautiful and durable; the bottom is equipped with universal wheels for easy movement.
II.Performance Parameter
Input power: single-phase three-wire 220V, 50Hz
Dimensions: 1600*750*1700mm
Weight: <240kg
III.Components List and Detailed Introduction
3.1 Main Part
|
Number
|
Name
|
|
1
|
Frame
|
|
2
|
Basic components (integrated tool box, hydraulic station, oil pan)
|
|
3
|
Universal wheels
|
|
4
|
Operation panel
|
|
5
|
Power supply box
|
|
6
|
DC24 power supply box
|
|
7
|
Button box
|
|
8
|
Relay box
|
3.2 Hydraulic Components
|
Number
|
Name
|
|
1
|
4/2 way manual valve
|
|
2
|
4/2 way solenoid valve
|
|
3
|
4/3 way solenoid valve
|
|
4
|
Pilot pressure reducing valve
|
|
5
|
Pilot sequence valve
|
|
6
|
Pilot relief valve
|
|
7
|
Direct-acting relief valve
|
|
8
|
Speed regulating valve
|
|
9
|
Hydraulic control one-way valve
|
|
10
|
Travel valve
|
|
11
|
One-way valve
|
|
12
|
Throttle valve
|
|
13
|
Five-way valve
|
|
14
|
Ball valve
|
|
15
|
T-type three-way valve
|
|
16
|
Pressure relay
|
|
17
|
Double-acting cylinder
|
|
18
|
Pressure gauge
|
|
19
|
Travel switch
|
|
20
|
Capacitive sensor
|
|
21
|
Inductive sensor
|
|
22
|
Photoelectric sensor
|
3.3 Accessories
|
Number
|
Name
|
Quantity
|
|
1
|
2mm electrical cable (red)
|
20
|
|
2
|
2mm electrical cable (black)
|
20
|
|
3
|
2mm electrical cable (yellow)
|
20
|
|
4
|
4mm electrical cable (yellow)
|
1
|
|
5
|
4mm electrical cable (blue)
|
1
|
|
6
|
Hex wrench
|
1
|
|
7
|
Tape
|
2
|
IV. Experiment List
Experiment 1: Introduction to hydraulic station
Experiment 2: 4/2 way manual valve operation experiment
Experiment 3: 4/2 way solenoid valve operation experiment
Experiment 4: 4/3 way solenoid valve operation experiment
Experiment 5: Direct-acting overflow valve operation experiment
Experiment 6: Pilot pressure reducing valve operation experiment
Experiment 7: Speed regulating valve operation experiment
Experiment 8: Hydraulic control check valve operation experiment
Experiment 9: Study on the relationship between throttle valve opening and closing degree and pressure difference
Experiment 10: Pressure relay operation experiment
Experiment 11: Travel valve operation experiment
Experiment 12: Pilot sequence valve operation experiment
