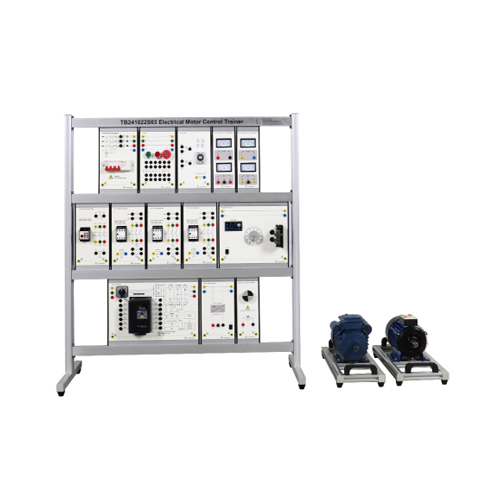

TB241022S03 Electrical Motor Control Trainer Teaching Workbench Equipment Educational Technology Electrical Training Equipment
I.Product Overview
1.1 Overview
The device includes a three-phase circuit breaker module, an AC contactor module, a time relay module, a thermal overload relay module, a frequency converter, a DC power supply, a DC reduction motor, a measuring unit, a motor, etc. It can meet the needs of different experimental teaching. It adopts a modular structure, which is easy to operate and maintain.
1.2 Features
(1) It can meet the needs of experimental teaching, and the depth and breadth of the experimental content can be flexibly adjusted according to needs.
(2) From dedicated power supplies and other experimental components to dedicated experimental connection wires, the performance and specifications of the supporting components are closely matched with the needs of the experiment
(3) Each measuring instrument has a reliable protection function, which is safe and reliable to use and ensure the safety of the operator
(4) It is equipped with protective devices such as overload protection, emergency stop buttons, etc. to ensure safe operation
II.Performance Parameter
2.1 Technical Parameters
Equipment power supply: AC380V
Inverter: 1.5KW; Input: three-phase AC380V; Output: three-phase AC380V
DC voltmeter: 50V
DC ammeter: 3A
AC voltmeter: 500V
AC ammeter: 5A
DC power supply: input AC220V; output DC24V
DC reduction motor: input DC24V
Three-phase squirrel cage asynchronous motor: △/Y voltage; 380/660v, 50Hz, 1500rpm, 1.1KW
Single-phase single capacitor induction motor: 550W/220VAC, 1500 rpm, with starting capacitor
2.2 Dimensions and Weight
Dimensions: 1100mm x 500mm x 1250mm
Weight: <82kg

III.Components List and Detailed Introduction
3.1 Main Part

Number	Name
1	Equipment body
2	Single-phase single-capacitor induction motor
3	Three-phase squirrel cage asynchronous motor

3.2 Electrical Parts

Number	Name
1	Three-phase circuit breaker module
2	AC contactor module
3	Time relay module
4	Thermal overload relay module
5	Inverter module
6	Switch module
7	AC voltage and current meter module
8	DC voltage and current meter module
9	DC power supply module
10	DC reduction motor module
11	DC stepper motor module

3.3 Accessories Part

Number	Name
1	Fuse (3A)
2	Fuse (5A)
3	Fuse (10A)
4	4mm electrical cable (yellow)
5	4mm electrical cable (green)
6	4mm electrical cable (red)
7	4mm electrical cable (blue)
8	4mm electrical cable (black)
9	4mm electrical cable (two-color)

IV.Product Configuration List

Name: Electrical Motor Control Trainer Teaching Workbench Equipment Educational Technology Electrical Training Equipment
Brand: SSEDU Vocational Training Equipment
SKU: TB241022S03
Availability: InStock
Rating: 5 (1 reviews)

No.	Name	QYT
1	Three-phase circuit breaker module	1
2	AC contactor module	3
3	Time relay module	1
4	Thermal overload relay module	1
5	Inverter module	1
6	Switch module	1
7	AC voltage and current meter module	1
8	DC voltage and current meter module	1
9	DC power supply module	1
10	DC reduction motor module	1
11	DC stepper motor module	1
12	Fuse (3A)	10
13	Fuse (5A)	10
14	Fuse (10A)	10
15	4mm electrical cable (yellow)	15
16	4mm electrical cable (green)	15
17	4mm electrical cable (red)	15
18	4mm electrical cable (blue)	10
19	4mm electrical cable (black)	10
20	4mm electrical cable (two-color)	5
21	Three-phase squirrel cage asynchronous motor	1
22	Single-phase single capacitor induction motor	1

V.Experiment List
Experiment 1 Inverter control motor operation
Experiment 2 Three-phase motor operation test
Experiment 3 Three-phase motor forward and reverse test
Experiment 4 DC motor forward and reverse test
Experiment 5 Stepper motor operation test
Experiment 6 Single-phase single-capacitor motor operation test
