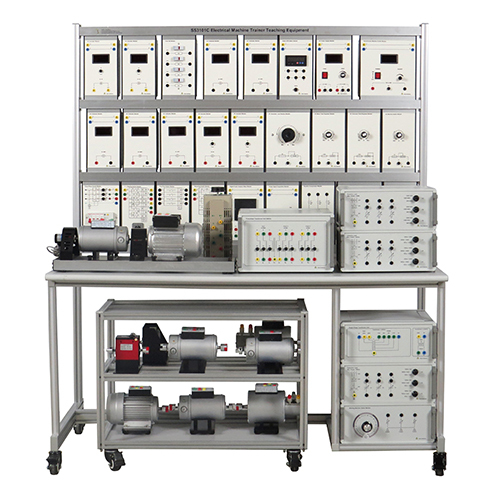

SS3101C Electrical Machine Trainer Teaching Equipment Vocational Trainer Workbench Educational Laboratory Bench Electrical Training Equipment1 Product Overview
1.1 Overview
This training device includes various types of induction motors and industrial control components. Through relevant experiments, you can be familiar with the operating characteristics of AC motors, DC motors and transformers, master their control principles and control methods, and cultivate students' corresponding knowledge and skills. It is suitable for the teaching and skill training assessment of related majors in higher vocational schools, colleges, secondary vocational schools and technical schools.
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure, which is simple and elegant as a whole. Adjustable feet are installed at the bottom, and the height can be adjusted individually according to the ground conditions. The measuring instrument and training power supply are installed in a built-in integrated hanging box, which is easy to use and not easy to damage.
(2) Various types of motors are fully equipped and can be used in combination.
(3) The combination of software and hardware can complete the training content of various subjects
(4) The training platform has a good safety protection system.
2 Performance Parameters
(1) Input power: three-phase five-wire system 380V±10% 50Hz
(2) Dimensions: 1640*850*1900mm
(3) Machine capacity: <2KVA
(4) Weight: <350kg
(5) Working conditions: ambient temperature -10℃～+40℃ relative humidity <85% (25℃)
3 Product Composition
3.1 Training table
3.2 Supporting modules
4 Can complete the training content
4.1 Single-phase capacitor motor experiment
(1) Static test of single-phase capacitor motor
(2) Running test of single-phase capacitor motor
(3) Start-up operation control of single-phase capacitor motor
4.2 Three-phase squirrel-cage asynchronous motor experiment
(1) Principle characteristics of three-phase asynchronous motor
(2) Static test of three-phase asynchronous motor
(3) Running test of three-phase asynchronous motor
(4) Forward and reverse conversion control of three-phase asynchronous motor
(5) Star-delta start control of three-phase asynchronous motor
4.3 Three-phase wound motor experiment
(1) Principle characteristics of three-phase wound motor
(2) Static test of three-phase wound motor
(3) Connection and operation of three-phase wound motor
(4) Measurement of operating parameters of three-phase wound motor
(5) Start-stop control of three-phase wound motor
(6) Application training of slip ring rotor starter
4.4 Three-phase AC excitation synchronous motor experiment
(1) Principle and characteristics of three-phase AC excitation synchronous motor
(2) Static test of three-phase AC excitation synchronous motor
(3) Connection and operation of three-phase AC excitation synchronous motor
(4) Start-up control experiment of three-phase AC excited synchronous motor
(5) Speed regulation operation control of three-phase AC excitation synchronous motor
(6) Closed-loop control experiment of three-phase AC excitation synchronous motor
(7) DC motor with three-phase AC excitation synchronous motor power generation experiment
4.5 Compound Excitation DC Motor Experiment
(1) Motor function and transmission group test
(2) Static test of motor technical parameters
(3) Motor control circuit connection and function
(4) Motor function technical parameter test
4.6 Single-phase Transformer Experiment
(1) Single-phase transformer static test
(2) No-load and load characteristics of single-phase transformers
(3) Single-phase transformer short-circuit voltage and current short-circuit test
(4) No-load and load characteristic test of single-phase toroidal transformer
(5) Single-phase toroidal transformer short-circuit voltage and short-circuit current test
4.7 Three-phase Transformer Experiment
(1) Principle and characteristics of three-phase transformer
(2) Three-phase transformer static test
(3) Star connection of three-phase transformer load
(4) Delta connection of three-phase transformer load
(5) Y-Y connection of three-phase transformer
(6) Y—△ connection of three-phase transformer
4.8 Three-phase auto voltage regulator recognition experiment
4.9 Torque, speed, power measurement experiment of motor
(1) Hardware connection and display
(2) Software connection and display
