TB230126S30 Electric Pick and Place Training Module Mechatronics Training Equipment Didactic Equipment Vocational Training Equipment
1. Product Introduction
1.1 Product Description

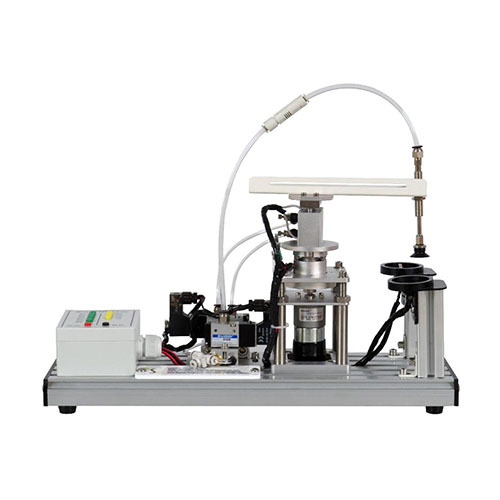

TB230126S30 Electric Pick And Place Module is an automated material handling equipment for teaching, designed for mechatronics, automation control and other professional courses in vocational schools. This equipment integrates electrical control, pneumatic technology and mechanical transmission technology, and realizes the automatic picking, transfer and placement functions of materials through PLC programming, which is suitable for basic teaching of automated production lines.
This module adopts mechatronics design, mainly composed of electric actuators, pneumatic adsorption systems and material detection units. The equipment detects the material status through micro switches, drives the robot arm to move by DC reduction motors, and completes material handling with vacuum suction cups. It has a station interlocking function, which can simulate the safety control logic of industrial sites and is an ideal training workbench for automation control teaching
1.2 Product Features
Multi-technology integration: integrated electric drive, pneumatic control and sensor detection technology
Safe and reliable: 24V low-voltage power supply, in line with teaching safety standards
Visual design: transparent silo is convenient for observing the material status
Intelligent interlocking: with silo status detection and safety interlocking functions
Modular structure: can be used alone or combined with other teaching modules
2. Technical Specifications
Basic technical parameters
|
Power supply voltage |
DC 24V |
|
Air source pressure |
0.4 MPa~0.6 MPa (external air pump required) |
Equipment appearance parameters
|
Dimension |
462 mm*146 mm*295 mm |
|
Weight |
≤5 kg |
3. Product Component Names and Function Introduction
3.1 Product main body
|
No. |
Name |
Qty. |
|
1 |
Junction box |
1 |
|
2 |
Solenoid valve |
2 |
|
3 |
Vacuum generator |
1 |
|
4 |
Telescopic cylinder |
1 |
|
5 |
Gear motor |
1 |
|
6 |
Suction cup |
1 |
|
7 |
Silo |
2 |
3.2 Product accessories
|
No. |
Name |
Qty. |
|
1 |
25-core signal cable |
1 |
|
2 |
Air pipe (3 m) |
1 |
|
3 |
Material block |
2 |
|
4 |
USB flash drive |
1 |
|
5 |
2 mm safety electrical cable (black,100 cm) |
1 |
|
6 |
2 mm safety electrical cable (red,100 cm) |
1 |
|
7 |
2 mm safety electrical cable (green,100 cm) |
6 |
|
8 |
2 mm safety electrical cable (yellow,100 cm) |
4 |
4. Product Teaching Experiment List
(1) Basic operation and use of equipment
