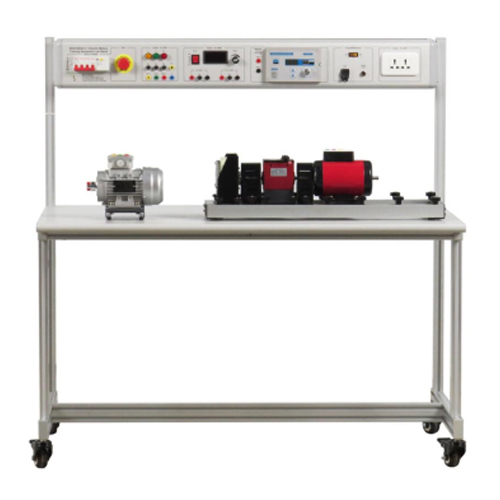

SR2101S Electric Motors Training Equipment Lab Stand School Training Bench Equipment Educational Technology Electrical Training Equipment
1. Product Introduction
1.1 Product Description
The equipment includes various types of motors and industrial control components. Through relevant experiments, students can familiarize themselves with the performance characteristics of DC motors and the use of various industrial control components, mastering control principles and methods. This system is suitable for higher vocational education and helps improve students' knowledge and skills.
1.2 Product Features
1. The training workbench utilizes an aluminum column frame structure, which is simple and spacious. The base is equipped with multifunctional wheels for flexible mobility and adaptability to various surface conditions.
2. Compatible with various types of motors.
3. The combination of software and hardware allows for a variety of courses.
4. The training workbench is equipped with a powerful safety system.
2. Technical Specifications
2.1 Basic Technical Parameters
Power Supply Three-phase, five-wire, 380V ±10%, 60Hz
Operating Conditions Ambient Temperature: -10°C to +40°C
Relative Humidity: <85% (at 25°C)
2.2 Device Dimension
Dimension 795mm × 1310mm × 1300mm
Power <2 kW
Weight
<200kg
3. Product Introduction
3.1 Product Body
No. Name Quantity
1 Device Frame 1
2 Power Box 1
3 Motor Unit 2
3.2 Product Modules
No. Name Quantity
1 Three-phase Asynchronous Motor 1
2 Single-axis Magnetic Powder Brake 1
3 Dynamic Torque Sensor 1
4 DC Compound Motor 1
3.3. Product Power Box
No. Name Quantity
1 Main Power Switch
4p Leakage Circuit Breaker 1
2 Emergency Stop Button 1
3 AC 380V Output Unit 1
4 DC PWM Output Unit 1
5 Magnetic Powder Brake Control Module 1
6 Torque Transmitter Power Supply Unit 1
7 Socket 2
3.4 Product Accessories
No. Name Quantity
1 4mm electrical safety connection cable 5
2 4mm electrical safety connection cable 5
3 4mm electrical safety connection cable 5
4 4mm electrical safety connection cable 5
5 4mm electrical safety connection cable 5
6 Torque Transmitter Data Cable 1
7 4mm electrical safety connection cable 5
8 USB Cable 1
9 USB drive 1
10 Fuse 5
11 Fuse 5
4. Product teaching experiment list
(1) Three-phase asynchronous motor starting experiment
(2) Three-phase asynchronous motor torque and speed measurement experiment
(3) DC compound motor starting experiment
(4) DC compound motor torque and speed measurement experiment
