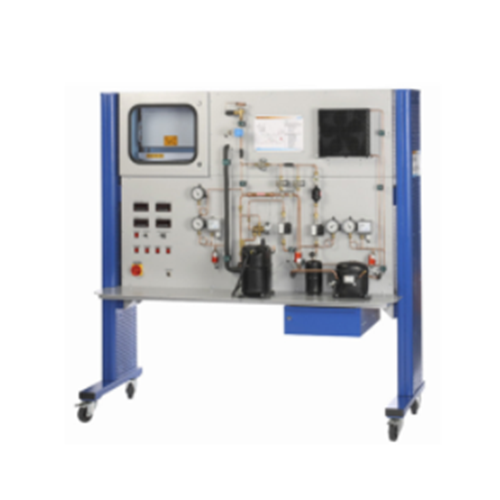

ZM6202 Efficiency Of Compressor Demonstration Unit Refrigeration Trainer Teaching Equipment Vocational Training EquipmentGENERAL
Works as singlestage and twostage with or without intercooler.
Consist of airreceiver tanks, intercooler, twostage air compressor, and failsafeoperation.
Fully instrumented control panel.
Mobile unit.
User guide/manual for students.
User guide/manual for lecturers (consists of result and answer sample).
EXPERIMENTAL CAPABILITIES
Performance characteristics of singlestage compressor.
Performance characteristics of twostage compressor.
Performance characteristics under various conditions (interstage pressure, intercooling cooling, etc)
PV diagram.
TECHNICAL SPECIFICATIONS
(Specification based on existing laboratory facilities)
Electricity
415VAC/3Phase/32 A or lower.
Water supply
Regular tap water.
Nett dimension (max)
Width: 2.0 m
Depth: 1.2 m
Height: 2.4 m
Operating Conditions:
Laboratory condition.
