Domestic Air Conditioner Simulator Refrigeration Laboratory Equipment Teaching Equipment Vocational Training Equipment

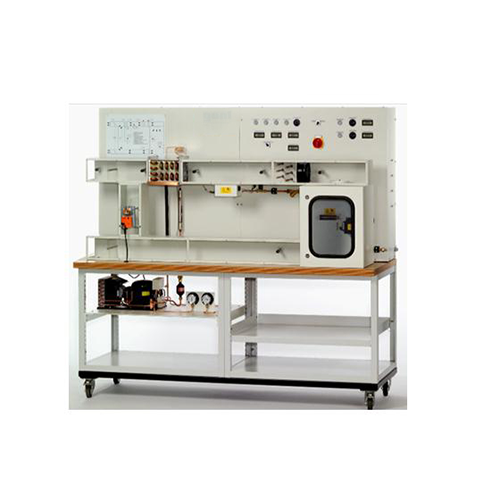

ZM6605 Domestic Air Conditioner Simulator Refrigeration Laboratory Equipment Teaching Equipment Vocational Training Equipment
Simple air conditioning system
Ventilation duct, cross section 250x250mm
Selectable expansion element, using solenoid valves
Expansion valve and capillary tubes 1m
Radial fan with regulating fin
Laminar evaporator with drip tray
Compressor: 1/2 HP
Condenser: Air cooled.
Evaporation chamber, damper.
Size (Length, Width, Height): 1100x720x490mm
Weight: 80kg
Must have fault insertion and simulation and allows drawing the PI Diagram via 1.26
User manual in Spanish with theory and practices for instructor and student
Size: 1100x720x490mm
Freezer main controller
Adopted 32bit highperformance ARM processor
Builtin USB port for PC connection
Up to 16 temperature modules can be interlocked
Builtin RS485 communication terminal for multipoint communication
The RS485 communication circuit must be designed as an insulation structure to improve noise immunity.
12bit AD input for pressure and humidity sensor interlocked 16Ch
Builtin 16channel digital input for function control.
16 builtin LEDs to verify the output status inside the PCB
Builtin 16 external LEDs to verify the output status
Up to 16 relay output channels (8 basic channels, 8 optional channels)
The relay for the output must have a rating of 10 A or higher.

The SMPS and DCDC converter must be integrated and designed with an external signal and an insulation structure.
Power source: AC86 ~ 264V, 50 / 60Hz free voltage
Within the size of PCB 250X140
It must contain the elements cited below as:
Compressor: 1 / 2HP, single phase 220V, Control box.
Condenser: Air cooled.
Evaporator: Pin, Tube Type.
Accumulator: 1 / 2HP
Receiver Tank: 1 / 2HP
Expansion Valve: Manual, welded.
Electronic valve to operate: 3/8 ’’ with clamp or welded.
Filter Dryer: 3/8 ’’ with clamp or welded
Pressure gauge: High Pressure, Low Pressure.
Filling nipple, attached to a nipple to fill
Acrylic visor: with clamp or welded
Duct: PC 250x250
Fan: 220V, speed controller included
Pin heater: 1Kw
Wind Pressure: 220V Pitot Tube
Temperature Sensor: 9 pieces
Liquid Receiver, Accumulator
Refrigerator temperature module
Builtin 4Digit FND with good visibility
Up to 16 temperature modules can be interlocked
Builtin RS485 communication terminal for multipoint communication
RTD type temperature sensor input
Accuracy within ± 0.2 degrees
Builtin 10A rating relay
Builtin 4bit rotary switch for address configuration
Using a 10 A output relay
Power source: DC24V
Front PCB size within 70X50
