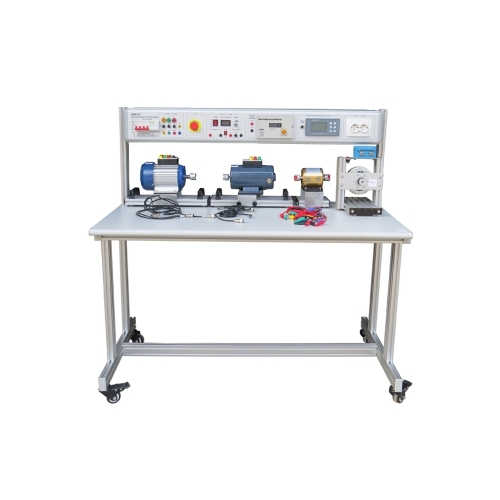

ZE3353 Didactic Station of Foundations of Circuits With Contact School Educational Equipment Vocational Trainer Workbench Electrical Training EquipmentI. Product overview
1.1 Overview
This training device includes slip ring motors, three-phase squirrel cage asynchronous motors, DC compound excitation motors, Darland motors, starters and other devices. Through related experiments, you can be familiar with slip ring induction motors, three-phase squirrel cage asynchronous motors and The principle of Daland electric motor and so on. Cultivate students' corresponding knowledge and skills, suitable for teaching and skill training assessment of related majors in higher vocational schools, colleges, secondary vocational schools and technical schools.
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure, the measuring instrument and the training power supply are built-in and integrated installation, and the training circuit and components are combined in a hanging box. Each unit is flexible, convenient to use, and not easy to damage.
(2) The experimental circuits and devices are fully equipped and can be used in combination to complete the training content of a variety of courses.
(3) The training platform has a good safety protection system.
II. Performance parameters
(1) Input power: three-phase five-system AC220V±10%
(2) Dimensions: 1575mm×680mm×835mm
(3) The capacity of the whole machine: <1KVA
(4) Weight: <100kg
(5) Working conditions: ambient temperature -10℃～+40℃ relative humidity ＜85% (25℃)
III. Product composition
3.1 Power box
3.2 Training table
3.3 Power control panel configuration
3.4 Hanging box module
IV. Can complete the training content
(1) AC contactor control three-phase squirrel cage motor starting training
(2) AC contactor control motor forward and reverse training
(3) Daland motor starting training
(4) Start training of DC compound excitation motor
(5) Slip ring induction motor starting training
