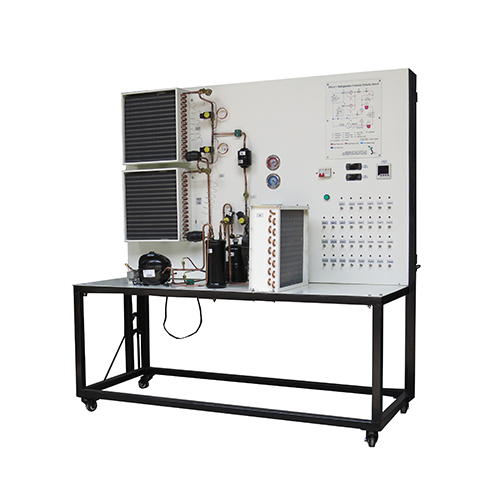

ZM6301 Didactic Bench For Simulation Of Refrigeration Group Failures School Teaching Equipment Refrigeration Trainer Teaching Equipment
Function
Study of the basic concept of a refrigeration plant
Study of 30 failures on the refrigeration, electrical and control system.
Study of parallel evaporator coupling.
Study of different modes of relaxation
Descriptif
Refrigeration circuit with hermetic compressor at R 134 a, power 1/6 hp
Mounting on mobile chassis with blocking castors.
Oil separator, steam liquid exchanger, VPC.
Complete set of components for the development of the didactic programme
Voltage and variable current circuits, minimum characteristics
Minimum cold system instrumentation
Temperature measurement and display.
2 010 and 030 bar manometers
1 float meter for refrigerant
Colour synoptic panel, reproducing all circuits, mounted on a painted metal structure
Introducing system for failures and alarms, with lights, switches and buttons
panel of failures
Display of installation parameters
Safety devices: differential circuit breaker switch and standard installation protection
Fluids/ connection
