ZM7314 Demonstration Infiltration Apparatus Didactic Equipment Vocational Education Equipment Fluid Mechanics Lab Equipment
1. Equipment introduction
1.1 Overview
Osmosis is a process that occurs every moment in nature, and the types of osmosis are extremely rich. In engineering construction, infiltration sometimes facilitates the project, but sometimes it causes construction difficulties. For example, in the mining industry, accidental disasters caused by infiltration are often encountered. Therefore, people need to better understand the basic laws of infiltration so that infiltration can better provide people with controllable help. Understanding the basic laws of infiltration requires professional experimental demonstration equipment to help users understand the various forms of infiltration, and study the permeability of different types of soil through experimental demonstration methods that control variables.
The ZM7314 demonstration permeability meter is a device that can study the permeability of different types of soil and its influencing factors. The device provides a visual experiment module so that users can intuitively observe the experimental phenomena.
1.2 Features
(1) The structure of the experimental device uses stronger and more corrosion-resistant materials to ensure that the device is sturdy and durable.
(2) The experimental equipment adopts a modular design. The advantages of this design can help users understand the experimental principles and methods more intuitively.
(3) The experimental equipment provides a visual experiment module, which can help users better observe the experimental phenomena.
(4) The experimental equipment has strong compatibility with the test medium and can conduct comparative experiments to study a variety of different influencing factors.
2. Technical parameters
Size: 550mm*420mm*870mm
Weight:25kg
Working conditions: Ambient temperature -10℃～+40℃; relative humidity < 85% (25℃)
3. Components list and detailed introduction

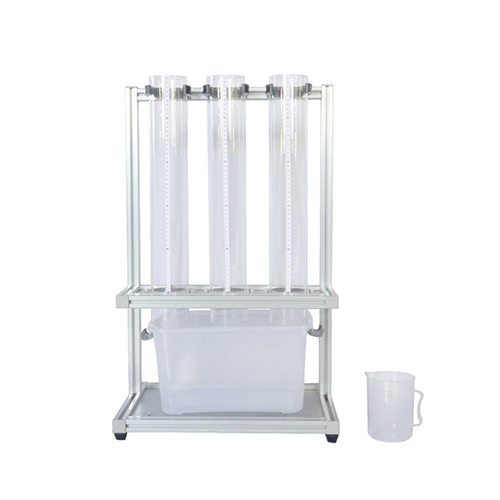

3.1 Main part
|
No.
|
Name
|
|
1
|
Experimental Transparency Module
|
|
2
|
Permeate water collection tank
|
|
3
|
Experimental device frame
|
|
4
|
Measuring cup
|
3.2 Equipment configuration list
|
No.
|
Name
|
Qty
|
|
Component 1
|
Graduated experimental container
|
3
|
|
Component 2
|
Permeate water collection tank
|
1
|
|
Component 3
|
Measuring cup
|
1
|
3.3 Accessories
|
No.
|
Name
|
Qty
|
|
1
|
Measuring cup
|
1
|
4. Experiment list
Experiment 1: Study the effect of soil particle size on permeability
Experiment 2: Study the influence of soil structure on permeability
Experiment 3: Study the effect of soil porosity on permeability
Experiment 4: Study the effect of soil saturation on permeability
