ZM8110 Deep Bed Filter Column Demonstration Capabilities Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipment measuring how fast total head loss increases with filtration run
• measuring pressure drop profiles through the filter bed
• measuring suspension concentration profiles through the filter bed
• demonstration of reversed flow fluidisation and backwashing
• the column may be readily adapted for absorption and ion
• Exchange studies.
1.Technical Details
• Filter column: Clear acrylic, 100mm internal
• diameter x 1350mm long
• Typical media depth: 700mm
• Gauze mesh size: 0.35mm
• Sump tanks: 2 - capacity 350 litres each
• Flow meter range: 0.5 - 5.0 litres/min
• Manometers: 41 tube multi-bank
• Pump rating: 0.37Kw
2.Ordering Specification

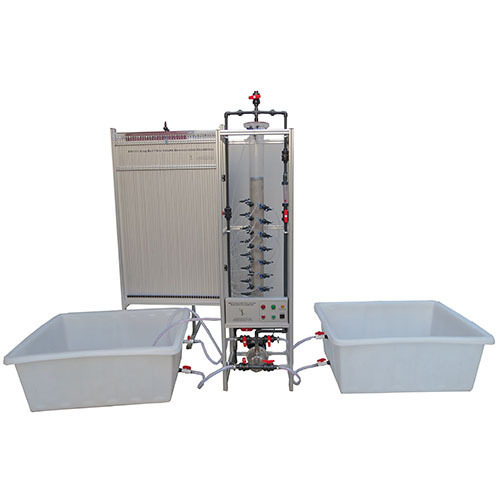

• A clear perspex column (100mm internal diameter x 1350mm long) mounted in a floor standing framework approximately 2m high.
• Service system comprises of: pump, 2 sump tanks (each 350L capacity), flow controller, rotameter is supported by a corrosion resistant gauze mesh below which is packed 1kg of 10mm Ballotini.
• Slotted sample tubes penetrate the filtration medium at various depths.
• Sampling and manometer tappings are located at 20mm depth intervals staggered in position over 0.8m column height.
• Control valves fitted to the sampling tubes allow isokinetic sampling.
3.Essential Equipment
Filter Media: Approx 10kg of a test medium is required to pack the column.
Suitable alternatives include well rounded quartz-grain sand BS16-30 mesh (1.0-0.5mm), anthracite, crushed flint or aluminium oxide.
4.Recommended accessories
• 40 sample collectors (test tubes or bottles)
• Turbidimeter or Spectrophotometer
• Flexible tubing for drain connection etc.
• 1 metre rule
• Air foot-pump and pressure tubing (2.5m)
5.Services Required
Electrical supply: 220-240V/1ph/50Hz
6.Overall Dimensions
o Height: 2.2m
o Width: 2.4m
o Depth: 1.0m
