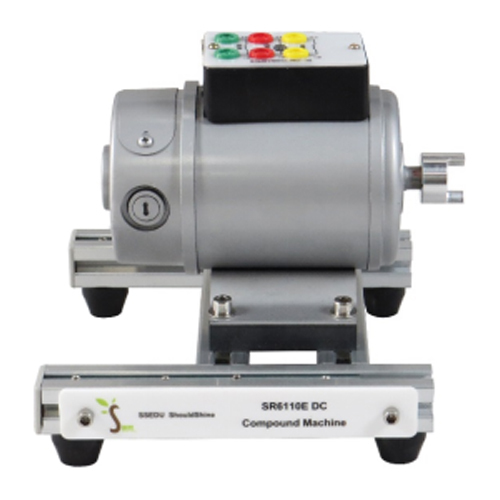

SR6110E DC Compound Machine Vocational Trainer Workbench Educational Laboratory Bench Electrical Training Equipment1. Product Introduction
1.1 Product Description
A DC compound-wound motor is a type of DC motor in which both shunt windings and series windings are installed on the main magnetic poles. Based on the direction of magnetic field superposition, it can be divided into two types: differential compound-wound and cumulative compound-wound. Its excitation system consists of both parallel and series circuits. Generators often use cumulative compound-wound connections to stabilize voltage output, while motors use differential compound-wound to achieve approximately constant speed under varying loads.
1.2 Product Features
The product boasts excellent electrical safety performance, employing superior protective design and reliable grounding.
The product features an aesthetically pleasing design and a simple structure.
The product utilizes corrosion-resistant, robust materials, ensuring durability and significantly extending its service life.。
Technical Specifications
2.1 Technical Parameters
Rated voltage of composite DC motor: DC42V;
DC excitation voltage: DC36V;
Operating environment requirements: ambient temperature -10℃～+40℃, relative humidity < 85% (25℃).
2.2 Dimension and Weight
Dimension: 240mm*240mm*150mm
Weight: <5kg
3. Product Component Names and Functions
3.1 Main Body of the Product
|
No.
|
Name
|
Quantity
|
|
1
|
Connection Scokets block
|
1
|
|
2
|
Coupling
|
1
|
|
3
|
Base
|
1
|
3.2 Product Accessories
|
No.
|
Name
|
Quantity
|
|
1
|
4mm electrical safety connection cable, black
|
3
|
|
2
|
4mm electrical safety connection cable, red
|
3
|
4. Product Teaching Experiment List (See Experiment Manual for details)
(1) Wiring method for DC Compound Machine
