1. Product Introduction
1.1 Product Description

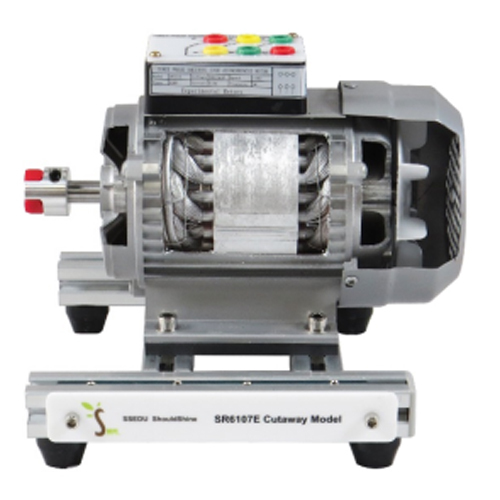

The Cutaway Model is essentially a three-phase squirrel-cage induction motor. The three-phase squirrel-cage induction motor is a common type of AC motor, widely used in industry, agriculture, and household appliances. It features a simple structure, reliable operation, and convenient maintenance, making it an important power source in industrial production. Three-phase induction motors offer the following advantages: simple structure and low manufacturing cost; reliable operation and convenient maintenance; and high starting torque, making them suitable for various loads.
1.2 Product Features
1. The product boasts excellent electrical safety performance, employing superior protective design and reliable grounding.
2. The product features an aesthetically pleasing design and a simple structure.
3. The product utilizes corrosion-resistant, robust materials, ensuring durability and significantly extending its service life.
2. Technical Specifications
2.1 Technical Parameters
Nominal voltage: Three-phase five-wire AC380V~50Hz; Operating environment requirements: Ambient temperature -10℃～+40℃, relative humidity < 85% (25℃).
2.2 Dimension and Weight
Dimension: 270mm × 240mm × 250mm
Weight: < 20kg

3. Product Component Names and Functions
3.1 Main Body of the Product
No.    Name    Quantity
1    Junction box    1
2    Rotor    1
3    Coupling    1
4    Heat dissipation fins    1
3.2 Product Accessories
No.    Name    Quantity
1    Yellow 4mm electrical safety connection cable    2
2    Red 4mm electrical safety connection cable    2
3    Green 4mm electrical safety connection cable    2
4. Product Teaching Experiment List (See Experiment Manual for details)
(1) Teaching of star-delta connection
