TB230126S33 Conveyor Training Module Mechatronics Training Equipment Didactic Equipment Vocational Training Equipment Teaching Equipment

Name: Conveyor Training Module Mechatronics Training Equipment Didactic Equipment Vocational Training Equipment Teaching Equipment
Brand: SSEDU Vocational Training Equipment
SKU: TB230126S33
Availability: InStock
Rating: 5 (1 reviews)

1. Product Introduction

1.1 Product Description

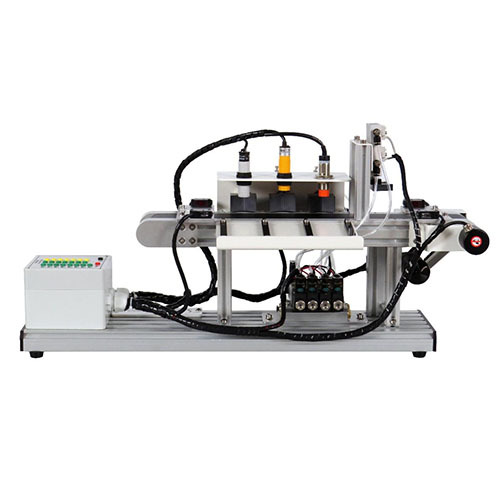

The TB230126S33 Conveyor Module is a training device designed for automation teaching. It is suitable for students and teachers to conduct comprehensive learning of PLC control, sensor application, pneumatic technology and material sorting system. By simulating industrial assembly line scenes, it helps users master the core technical principles of conveyor belt control, material detection and classified storage.

This device consists of a conveyor belt system, pneumatic actuators, multiple types of sensors and electrical control interfaces, and realizes automatic sorting functions through external PLC and air source. The core functions are: detecting the material material through photoelectric sensors and proximity switches, controlling the cylinder to push different material blocks to the corresponding storage bin, and using encoders to monitor the running status of the conveyor belt. The device supports multi-module linkage and is suitable for teaching and experiments of complex automation systems.

1.2 Product Features

1. Integrated teaching design
Transparent storage bins and visual conveyor belts intuitively display the material transportation and sorting process.
Modular structure supports independent experiments or linkage with other equipment.
2. Multi-sensor collaboration
Integrated capacitive, inductive, photoelectric and rotary encoders to cover a variety of detection scenarios.
3. Efficient pneumatic control
Double-acting cylinder and dual-axis cylinder are used to accurately control the material blocking and pushing actions.
Equipped with 8 outlet throttling speed regulating valves to adjust the movement speed of pneumatic components.
4. Safe and convenient
DC 24V low-voltage power supply meets teaching safety standards.
Standardized 2 mm terminal interface, compatible with mainstream PLC controllers.DC 24V low-voltage power supply meets teaching safety standards.Standardized 2 mm terminal interface, compatible with mainstream PLC controllers.

2. Technical Specifications

Basic technical parameters

Power supply voltage	DC 24 V
Air source pressure	0.4 MPa~0.6 MPa (external air pump required)

Equipment appearance parameters

Dimension	670 mm420 mm335 mm
Weight	≤20 kg

3. Product Component Names And Function Introduction

3.1 Product main body

NO.	Name	Qty.
1	Junction box	1
2	Conveyor belt	1
3	Cylinder	3
4	Capacitive sensor	1
5	Photoelectric sensor	1
6	Inductive sensor	1
7	Through-beam sensor	2
8	Encoder	1
9	Gear motor	1
10	Solenoid valve	4
11	Air inlet	1

3.2 Product accessories

No.	Name	Qty.
1	Material block	9
2	2 mm safety electrical cable (yellow,100 cm)	7
3	2 mm safety electrical cable (green,100 cm)	15
4	2 mm safety electrical cable (red,100 cm)	1
5	2 mm safety electrical cable (black,100 cm)	1
6	U disk	1
7	Air pipe (3 m)	1
8	25-core connecting line	1

4. Product Teaching Experiment List

(1) Basic operation and use of equipment
