SR3015 Control Unit for Ventilation System Thermal Lab Equipment Teaching Equipment Didactic Equipment1. Product Introduction
1.1 Product Description

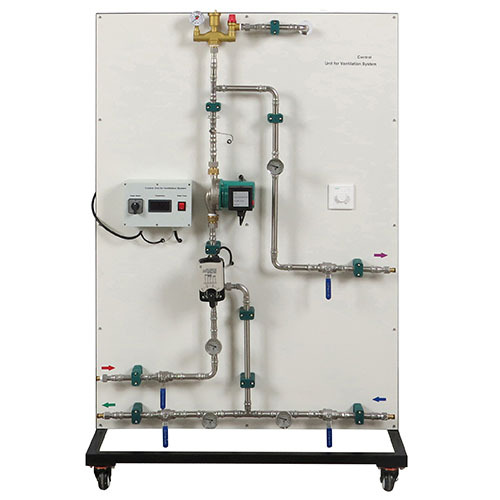

This equipment is an important component for realizing indoor temperature control in the TB231211S67 Ventilation System. It connects the ventilation system to an external hot water source via quick-release couplings. This structure allows for demonstration of room temperature control within the ventilation system.
1.2 Product Features
1. The product boasts an excellent, aesthetically pleasing design.
2. The product features controllable piping, allowing for temperature control of the water supply through adjustment of the electric valve.
3. The product utilizes more durable materials, significantly extending its service life.
2. Technical Specifications
2.1 Technical Parameters
Power Supply: Single-phase three-wire 220V~50Hz
Operating Environment Requirements: Ambient Temperature: 10℃～50℃; Relative Humidity <75% (at 25℃).
2.2 Dimension and Weight
Dimension: 1000mm × 650mm × 1600mm
Weight: Approx. 70kg
3. Product Component Names and Functions
3.1 Main Body
|
No.
|
Name
|
Quantity
|
|
1
|
High-Pressure Pipeline Protection and Overflow Device
|
1
|
|
2
|
Water Pump
|
1
|
|
3
|
Mechanical Thermometer
|
4
|
|
4
|
Electronic Thermometer
|
1
|
|
5
|
Three-Way Electric Ball Valve Proportional Knob
|
1
|
|
6
|
Power Switch
|
1
|
|
7
|
Water Pump Control Button
|
1
|
|
8
|
Three-Way Electric Ball Valve
|
1
|
|
9
|
Mixing Water Outlet
|
1
|
|
10
|
Heat Source Inlet
|
1
|
|
11
|
Cold Source Outlet
|
1
|
|
12
|
Cold Source Inlet
|
1
|
3.2 Accessories
|
No.
|
Name
|
Quantity
|
|
1
|
Quick Connector
|
2
|
|
2
|
Flexible Hose
|
1
|
4. Product Teaching Experiment List
(1) Temperature control of airflow in the ventilation system
