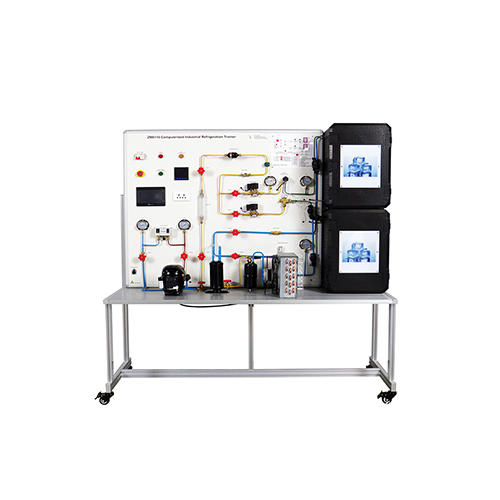

ZM6110 Computerized Industrial Refrigeration Trainer Refrigeration Laboratory Equipment Didactic Equipment Educational EquipmentI.Product Overview
1.1 Overview
This training bench is designed for industrial refrigeration research, and its main purpose is to control the temperature and relative humidity of one or more cold storage rooms. If yes, a dedicated compressor and a dedicated condenser are used to control two different cold storage rooms, one for freezing and one for preservation. This training equipment simplifies the data acquisition process and displays the experimental data on the computer using appropriate sensors and processors.
This training bench consists of a compressor, a condenser, a gas-liquid separator, a liquid reservoir, a drying filter, a sight glass, a flow meter, an electronic expansion valve, a solenoid valve, a manual valve, an evaporation pressure regulating valve, a freezer, a cold storage room, etc.
1.2 Features
1. The training table adopts an aluminum alloy frame structure, which is simple and firm, which not only reduces the weight of the equipment, but also ensures the strength of the equipment.
2. The bottom is equipped with 4 universal casters for easy movement.
3. The refrigeration cycle pipeline is laid on the installation panel, and the high and low temperature areas are painted with different colors for easy observation and distinction.
4. The equipment is equipped with a good safety protection system. There is a high and low pressure protection switch in the refrigeration cycle. When the system pressure is abnormal, the compressor can stop working immediately to protect the compressor and the system.
5. The electrical circuit is equipped with a leakage circuit breaker, an emergency stop device and reliable grounding protection to ensure the safety of equipment and personnel.
II.Performance Parameter
2.1 Technical Parameters
1. Input power: 220V±10%, 50Hz
2. Operating conditions: ambient temperature 10℃～30℃, relative humidity <75% (25℃)
3. Refrigerant: R134a
4. Freezer (refrigerator) room parameters:
(1) Inner surface area 0.92㎡
(2) Outer surface area 1.2㎡
(3) Insulation layer thickness 35mm
(4) Insulation filling material: foam plastic, heat transfer coefficient 0.042w/M.K
(5) Freezer material: 4mm white acrylic, heat transfer coefficient 0.19w/M.K
2.2 Dimensions and Weight
Dimensions: 1800mm×800mm×1800mm
Weight: <100kg
III.Components List
3.1 Introduction
|
Number
|
Name
|
|
1
|
Circuit breaker
|
|
2
|
Power indicator light
|
|
3
|
Fault indicator light
|
|
4
|
Emergency stop button
|
|
5
|
Compressor operation indicator light
|
|
6
|
Single-phase multi-function meter
|
|
7
|
Touch screen
|
|
8
|
Power socket
|
|
9
|
Low pressure meter
|
|
10
|
High pressure meter
|
|
11
|
High and low pressure protection switch
|
|
12
|
Compressor
|
|
13
|
Condenser
|
|
14
|
Liquid storage tank
|
|
15
|
Hand valve
|
|
16
|
Flow meter
|
|
17
|
Dry filter
|
|
18
|
Sight glass
|
|
19
|
Solenoid valve
|
|
20
|
Pressure gauge
|
|
21
|
Solenoid expansion valve
|
|
22
|
Low pressure gauge
|
|
23
|
Insulation box
|
|
24
|
One-way valve
|
|
25
|
Thermostatic expansion valve
|
|
26
|
Low pressure meter
|
|
27
|
Low pressure valve
|
|
28
|
Gas-liquid separator
|
|
29
|
Network port
|
|
30
|
Schematic diagram
|
3.2 Accessories
|
No.
|
Name
|
|
1
|
USB cable
|
|
2
|
USB flash drive
|
3.4 Product Configuration List
|
No.
|
Name
|
QYT
|
|
1
|
Circuit breaker
|
1
|
|
2
|
Indicator light
|
3
|
|
3
|
Emergency stop button
|
1
|
|
4
|
Single-phase multi-function meter
|
1
|
|
5
|
Touch screen
|
1
|
|
6
|
Power socket
|
1
|
|
7
|
High and low voltage protection switch
|
1
|
|
8
|
Pressure gauge
|
5
|
|
9
|
Compressor
|
1
|
|
10
|
Condenser
|
3
|
|
11
|
Liquid storage tank
|
1
|
|
12
|
Hand valve
|
10
|
|
13
|
Flow meter
|
1
|
|
14
|
Dry filter
|
1
|
|
15
|
Sight glass
|
1
|
|
16
|
Solenoid valve
|
2
|
|
17
|
Insulation box
|
2
|
|
18
|
Solenoid expansion valve
|
1
|
|
19
|
Thermostatic expansion valve
|
1
|
|
20
|
Gas-liquid separator
|
1
|
|
21
|
Network port
|
1
|
|
22
|
Schematic diagram
|
1
|
|
23
|
USB cable
|
1
|
IV. Experiment List
Experiment 1 Software connection and data export test experiment
Experiment 2 Equipment normal operation test experiment
Experiment 3 Compressor fault test experiment
Experiment 4 Low voltage protection fault test experiment
Experiment 5 High voltage protection fault test experiment
Experiment 6 Condenser fan fault test experiment
Experiment 7 Insulation box fan (upper) fault test experiment
Experiment 8 Insulation box fan (lower) fault test experiment
