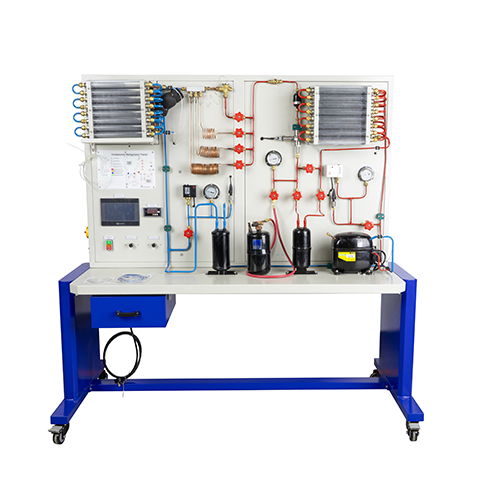

ZM6105 Compression Refrigeration Trainer Fridge Training Equipment Didactic Equipment Vocational Training Equipment1. Equipment introduction
1.1 Overview
ZM6105 compression refrigeration trainer is a device used to study the principle of compressor refrigeration. The device mainly includes four parts: compressor, evaporator, condenser and four throttling devices. The trainer includes a variety of sensors and can transmit data to a touch display. By processing these sensor readings, the relationship between throttling flow and cooling capacity can be studied.
1.2 Features
(1) The ZM6105 compression refrigeration trainer adopts an aluminum frame structure, which is simple, sturdy and reliable. It is also equipped with 4 movable casters, which greatly facilitates users' mobile use.
(2) The ZM6105 compression refrigeration trainer adopts a safe electrical layout and is grounded safely and reliably.
(3) The ZM6105 compression refrigeration trainer adopts a modular design, and each unit can operate independently, greatly increasing the type and quantity of experiments.
(4) The ZM6105 compression refrigeration trainer uses safe and environmentally friendly refrigerant R513A.
(5) The ZM6105 compression refrigeration trainer is equipped with a port that can communicate with a PC, which can realize data collection and chart analysis of the equipment.
2. Technical parameters
Input power: single-phase single-wire 240V+/- 10% 50Hz
Weight: 257kg
Size: 1810mm*870mm*1950mm
Working conditions: Ambient temperature 10℃～30℃ Relative humidity <75% (25℃)
3. Components list and detailed introduction
3.1 Main part
|
No
|
Name
|
|
1
|
Evaporator
|
|
2
|
Throttling device
|
|
3
|
Low voltage control switch
|
|
4
|
Low pressure gauge
|
|
5
|
Gas-liquid separator
|
|
6
|
cupboard
|
|
7
|
Sight glass
|
|
8
|
condenser
|
|
9
|
Electronic flow meter
|
|
10
|
High voltage control switch
|
|
11
|
High voltage meter
|
|
12
|
Electronic pressure sensor
|
|
13
|
receiver
|
|
14
|
compressor
|
3.2 Power box part
|
No
|
Name
|
|
1
|
touch display
|
|
2
|
load switch
|
|
3
|
USB port
|
|
4
|
power meter
|
|
5
|
Evaporator fan control knob
|
|
6
|
Condenser fan control knob
|
3.3 Equipment configuration list
|
No
|
Name
|
Qty
|
|
Component 1
|
compressor
|
1
|
|
Component 2
|
condenser
|
1
|
|
Component 3
|
Evaporator
|
1
|
|
Component 4
|
receiver
|
1
|
|
Component 5
|
Liquid storage tank
|
1
|
|
Component 6
|
Gas-liquid separator
|
1
|
|
Component 7
|
High voltage control switch
|
1
|
|
Component 8
|
Low voltage control switch
|
1
|
|
Component 9
|
Pressure Sensor
|
2
|
|
Component 10
|
Electromagnetic Flowmeter
|
1
|
|
Component 11
|
touch monitor
|
1
|
3.4 Accessories
|
No
|
Name
|
Qty
|
|
1
|
Software CD
|
1
|
|
2
|
USB cable
|
1
|
4. Experiment list
Experiment 1 Understand the use of compression refrigeration trainer
Experiment 2 Understanding the working conditions of the A-type throttling device of the
compression refrigeration trainer
Experiment 3 Understanding the working conditions of the B-type throttling device of the
compression refrigeration trainer
Experiment 4 Understanding the working conditions of the C-type throttling device of the
compression refrigeration trainer
Experiment 5 Understand the working conditions of the expansion valve of the
compression refrigeration trainer
