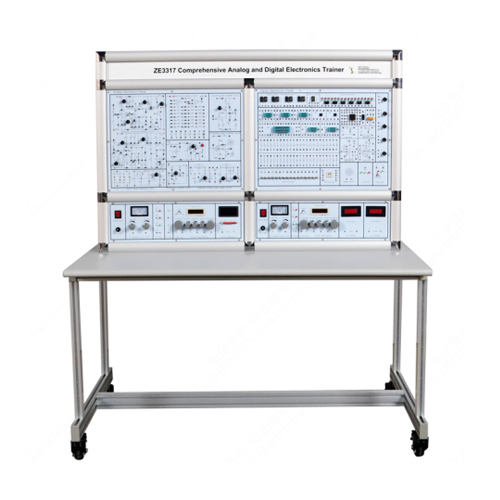

ZE3317 Comprehensive Analog and Digital Electronics Trainer School Training Bench Vocational Education Equipment Electrical Training EquipmentI.Product Overview
1.1 Overview
1. This product integrates digital circuit and analog circuit training systems, and can perform analog circuit related tests and digital circuit tests.
2. This product is designed with a stabilized power supply, AC low-voltage current, frequency generator, buzzer, multiple sockets, stabilizer, etc., providing rich resources for the measurement, debugging and new product development of electronic products.
1.2 Features
1. The equipment uses a special plug, which is convenient for students to quickly build experimental circuits to complete the test.
2. By using various electronic components and assembly tools, it can not only exercise students' assembly and debugging capabilities, but also exercise students' secondary development capabilities such as course design, graduation design, and skills competitions.
II.Performance Parameter
(1) Input power: single-phase three-wire AC 220V±10% 60Hz
(2) Dimensions: 1300mmx615mmx1526mm
(3) Total capacity: <2KVA
(4) Weight: <120kg
(5) Working conditions: ambient temperature -10℃～+40℃ relative humidity <85% (25℃)
III.Components List and Detailed Introduction
1. Analog circuit test part
2. Analog circuit power supply part
3. Digital circuit experiment part
4. Digital circuit power supply part
IV.Experiments can be completed
Digital circuit part
Experiment 1 Transistor switching characteristics, limiters and clamps
Experiment 2 Logical functions and parameter tests of TTL integrated logic gates
Experiment 3 Logical functions and parameter tests of CMOS integrated logic gates
Experiment 4 Connection and drive of integrated logic circuits
Experiment 5 Design and test of combinational logic circuits
Experiment 6 Decoders and their applications
Experiment 7 Data selectors and their applications
Experiment 8 Triggers and their applications
Experiment 9 Counters and their applications
Experiment 10 Shift registers and their applications
Experiment 11 Pulse distributors and their applications
Experiment 12 Using gate circuits to generate pulse signals---self-excited multivibrator
Experiment 13 Monostable triggers and Schmitt triggers---pulse delay and waveform shaping circuits
Experiment 14 555 time base circuits and their applications
Experiment 15 D/A. A/D converter
Experiment 16: Quiz answering device
Experiment 17: Electronic stopwatch
Experiment 18: 3⅓ digit DC digital voltmeter
Experiment 19: Digital frequency meter
Analog electronics part
Experiment 1: Use of common electronic instruments
Experiment 2: Simple test of diodes
Experiment 3: Input and output characteristics of transistors
Experiment 4: Single-stage amplifier circuit
Experiment 5: Two-stage amplifier circuit
Experiment 6: Negative feedback amplifier circuit
Experiment 7: Emitter follower
Experiment 8: Differential amplifier circuit
Experiment 9: Field effect tube amplifier
Experiment 10: RC sine wave oscillation circuit
Experiment 11: LC oscillator and frequency selection amplifier
Experiment 12: Basic parameter test of integrated operational amplifier
Experiment 13: Integrated operational amplifier proportional summing operation circuit
Experiment 14: Integrated operational amplifier integral and differential circuit
Experiment 15: Integrated operational amplifier voltage comparator circuit
Experiment 16: Waveform generator
Experiment 17: Active filter
Experiment 18: Integrated power amplifier
Experiment 19: Complementary symmetric power amplifier
Experiment 20: Integrated voltage regulator
Experiment 21: Series voltage regulator circuit
Experiment 22 Thyristor controlled rectifier circuit
