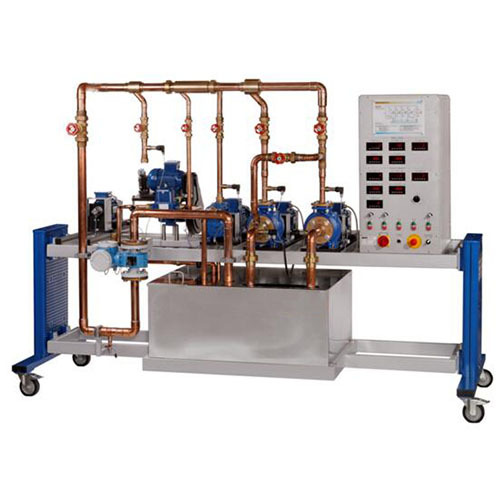

ZM7140 Comparison Pump Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment
experiments relating to key issues in pump engineering
comparison of various pump types: centrifugal pump, piston pump, side-channel pump
operation of centrifugal pumps in parallel or series configuration
free position for additional pump
three-phase AC motors for centrifugal pumps and additional motor with variable speed by frequency converter

Technical Data
Centrifugal pump 2x
- max. flow rate (Q): 300L/min
- max. head (H): 16,9m
- nominal speed: 2900min-1
Three-phase AC motor 2x, for centrifugal pump
- power output: 1,1kW
Side-channel pump, self-priming, one-stage
- Q: 83,3L/min, H: 50m
- nominal speed: 1450min-1
Three-phase AC motor for side-channel pump
- power output: 1,1kW
Piston pump
- Q: 17L/min, H: 60m
- nominal speed: 405min-1
Three-phase AC motor for piston pump
- power output: 0,55kW
Three-phase AC motor, additional motor, reversible
- power output: 0,75kW
- speed range: 750...3000min-1
 Measuring ranges
- flow rate: 0...500L/min
- pressure (inlet): -1...1,5bar
- pressure (outlet): 0...10bar
- torque: 0...15Nm
- speed: 0...3000min-1
- pump electrical power consumption: 0...2kW
LxWxH: 2860x1200x1960mm
Weight: approx. 430kg
400V, 50/60Hz, 3 phases or 230V, 60Hz, 3 phases
