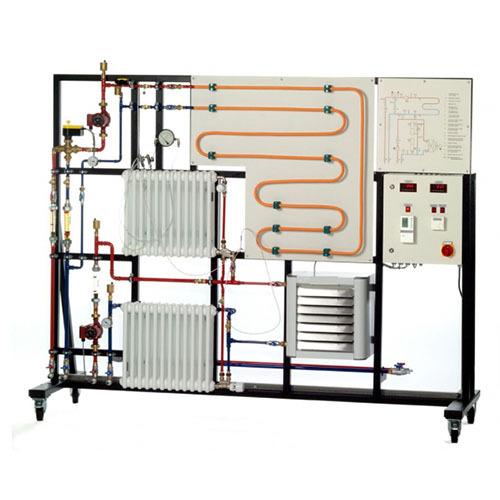

Two independent heating circuits: floor heating or forced convector with fan and two radiators
Features
- setup of a complete domestic heating system together with hot water generator
- 2 independent heating circuits: -- floor heating -- forced convector with fan, 2 radiators
- control devices for both heating circuits Learning objectives/experiments - design of a floor heating with controller and actuator -- temperature-led heating controller (outside temperature) with three-way mixing valve - design of a room heating system with radiators -- thermostatic valve -- one-pipe radiator valve - design of a room heating system with forced convector with temperature controller - function and design of commercially available heating technology components - measurement of differential pressures, temperatures and flow rates - energy calculation and evaluation of emitted heating capacity - reading and comprehension of symbols and process schematics

Specification
[1] together with hot water generator: setup of a complete domestic heating system with 2 independent heating circuits [2] heating circuit 1 with floor heating, circulating pump, heating controller, and 3-way mixing valve [3] heating circuit 2 with forced convector with fan, 2 radiators and circulating pump [4] 1 radiator with thermostatic valve and 1 radiator with 1-pipe radiator valve [5] room temperature controller for fan of forced convector
[6] measurement of flow rate and pressure [7] 8 measuring points for differential pressure and temperature [8] hot water connections with quick-release couplings
