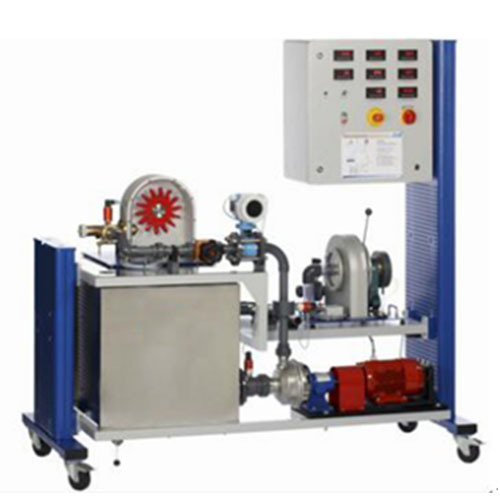

determining characteristic variables of a centrifugal pump
determining characteristic variables of water turbines together with the accessories pelton turbine  and Francis turbine
experiments on a pump in a closed water circuit with storage tank and flow control valve to adjust the back pressure
experiments on turbines: closed water circuit for supplying turbines
pipes and fittings made of PVC
3-phase AC motor for pump with variable speed via frequency converter
non-contact speed measurement at the turbine shaft and force sensor at the brake for measuring the torque
digital displays for pressures, flow rate, speed and torque

Technical Data
Standard centrifugal pump
- max. head: 23,9m
- max. flow rate: 31m³/h
Drive motor with variable speed
- power output: 2,2kW
- speed range: 0...3000min-1
Storage tank: 250L
 Measuring ranges
- pressure: 2x 0...4bar abs.
- flow rate: 0...40m³/h
- torque: 0...20Nm
- speed: 2x 0...4000min-1
Dimensions and Weight
LxWxH: 1900x790x1900mm
Weight: approx. 243kg
Required for Operation
230V, 50/60Hz, 1 phase or 230V, 60Hz/CSA, 3 phases
