ZT0005 Change of State of Gases Teaching Workbench Equipment Educational Technology Thermal Training Equipment1. Product Introduction
1.1 Product Description

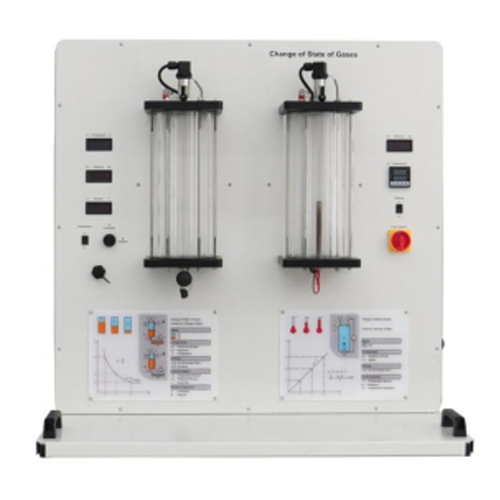

The Change of State of Gases Experiment Bench is a practical training and teaching equipment for laboratory use to verify gas state transformations. The four fundamental thermodynamic processes—isothermal, isobaric, isochoric, and isentropic—are the foundation of thermodynamics learning. This experiment uses air as the test gas and demonstrates the two fundamental processes of isothermal and isochoric transformations in two fully transparent gas tanks. In the first tank on the left, a compressor controls the increase and decrease of gas volume. The change is slow, and the work performed is negligible, making it considered an isothermal transformation. In the second tank on the right, the gas volume remains constant within a confined space. An electric heater slowly raises the gas temperature, causing the pressure to rise, demonstrating the isochoric transformation process. Both simulation labs feature a transparent, observable design. The temperature, pressure, and volume changes during the process are measured electronically and displayed directly on a digital display. These changes can also be transferred to a PC for processing. Through these experiments, students can familiarize themselves with the relationships between various physical quantities involved in gas state transformations, cultivating relevant knowledge, skills, and innovative development capabilities.
1.2 Product Features
1. The test bench's gas tank is fully transparent, allowing observation of the entire process of gas state changes.
2. The test bench can verify isothermal and isovolumetric changes in gas state changes.
3. Transient data (including water and air temperatures) during the test bench's changes can be digitally displayed using electronic instruments.
4. Physical quantity data collected during the test bench's changes can be transferred to a PC via a USB port for further processing.
2. Technical Specifications
2.1 Technical Parameters
Nominal voltage: Single-phase, three-wire AC 220V, 50Hz.
Required operating environment: Ambient temperature -10°C to +40°C, relative humidity < 85% (at 25°C).
2.2 Dimension and Weight
Dimension: 900mm × 550mm × 900mm
Weight: <50kg
3. Product Component Names and Functions
3.1 Product Main Part
NO. Name Quantity
1 Pressure transmitter 2
2 Safety valve 2
3 Temperature display for tank 2 1
4 Pressure display for tank 2 1
5 Volume display for tank 2 1
6 Positive/negative pressure selector 1
7 Air compressor start switch 1
8 USB communication port 1
9 Adjustment knob 1
10 Carrying handle 2
11 Temperature sensor 2
12 Exhaust valve 2
13 Pressure display for tank 1 1
14 Smart temperature controller for tank 1 heater 1
15 Heater start switch 1
16 Load switch 1
17 Heater 1
3.2 Product accessories
NO. Name Quantity
1 USB data cable 1
2 Software USB drive 1
4. Product Teaching Experiment List (See the Experiment Guide for details)
(1) Isothermal Process and Verification of Boyle's Law
(2) Isochoric Process and Verification of Charles' Law
